Union Tee

Double Ferrule Compression Tube Fittings

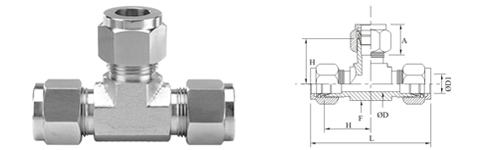

Stainless Steel Double Compression Union Tee Fitting Exporter Manufacturer


FOR IMPERIAL TUBE
Part No OD1
Imperial 		OD F
Hex 		A
Inch 		L
Inch 		H
mm
HSUT-101 1/16 0.05 1/2 0.34 1.40 14.00
HSUT-102 1/8 0.09 1/2 0.50 1.76 15.74
HSUT-103 3/16 0.12 1/2 0.54 1.92 17.78
HSUT-104 1/4 0.19 1/2 0.60 2.12 19.55
HSUT-105 5/16 0.25 5/8 0.64 2.34 21.33
HSUT-106 3/8 0.28 5/8 0.66 2.40 23.11
HSUT-107 1/2 0.41 13/16 0.90 2.84 25.90
HSUT-108 5/8 0.50 1 0.96 3.06 28.70
HSUT-109 3/4 0.62 1-1/16 0.96 3.14 29.71
HSUT-110 7/8 0.72 1-1/4 1.02 3.52 34.54
HSUT-111 1 0.88 1-3/8 1.23 3.86 36.83
HSUT-112 1-1/4 1.09 1-11/16 1.62 5.34 44.50
HSUT-113 1-1/2 1.34 2 1.97 6.20 50.80
HSUT-114 2 1.81 2-3/4 2.66 8.44 69.80


FOR METRIC TUBE
Part No OD1
Metric		 OD F
Hex 		A
mm		 L
mm		 H
mm
HSUT-101 2 1.7 9.5 12.* 44.7 15.7
HSUT-102 3 2.4 9.5 12.9 44.7 15.7
HSUT-103 4 2.4 12.7 13.7 50.8 18.8
HSUT-104 6 4.8 12.7 15.3 53.9 19.6
HSUT-105 8 6.4 14.2 16.2 59.7 21.3
HSUT-106 10 7.9 17.5 17.2 63.0 23.9
HSUT-107 12 9.5 20.6 22.8 72.0 25.9
HSUT-108 14 11.1 25.44 24.4 77.6 28.7
HSUT-109 15 11.9 25.44 24.4 77.6 28.7
HSUT-110 16 12.7 25.44 24.4 77.6 28.7
HSUT-111 18 15.1 26.98 24.4 79.6 29.7
HSUT-112 20 15.9 30 26.0 89.3 32.5
HSUT-113 22 18.3 30 26.0 89.3 32.5
HSUT-114 25 21.8 36 31.3 98.3 36.8
HSUT-115 28 21.8 46 36.6 128.0 43.2
HSUT-116 30 26.2 46 39.0 139.7 43.2
HSUT-117 32 28.6 46 42.0 144.6 49.3
HSUT-118 38 33.7 55 49.4 168.0 56.4
HSUT-119 50 45.2 68.85 65.0 211.3 69.80
