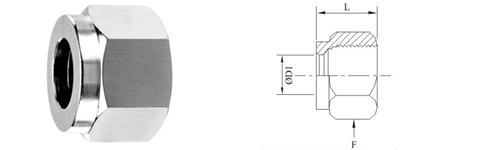

Nut
Double Ferrule Compression Tube Fittings
| FOR IMPERIAL TUBE | |||
| Part No |
OD1 Imperial |
F
Hex |
L inch |
| HSMPWC-101 | 1/16 | 5/16 | 0.31 |
| HSMPWC-102 | 1/8 | 7/16 | 0.47 |
| HSMPWC-103 | 3/16 | 1/2 | 0.47 |
| HSMPWC-104 | 1/4 | 9/16 | 0.50 |
| HSMPWC-105 | 5/16 | 5/8 | 0.53 |
| HSMPWC-106 | 3/8 | 11/16 | 0.56 |
| HSMPWC-107 | 1/2 | 7/8 | 0.69 |
| HSMPWC-108 | 5/8 | 1 | 0.69 |
| HSMPWC-109 | 3/4 | 1-1/8 | 0.69 |
| HSMPWC-110 | 7/8 | 1-1/4 | 0.69 |
| HSMPWC-111 | 1 | 1-1/2 | 0.81 |
| HSMPWC-112 | 1-1/4 | 1-7/8 | 1.25 |
| HSMPWC-113 | 1-1/2 | 2-1/4 | 1.50 |
| HSMPWC-114 | 2 | 3 | 2.06 |
| FOR METRIC TUBE | |||
| Part No |
OD1 Imperial |
F hex |
L mm |
| HSN-101 | 2 | 12 | 11.9 |
| HSN-102 | 3 | 12 | 11.9 |
| HSN-103 | 4 | 12 | 11.9 |
| HSN-104 | 6 | 14 | 12.7 |
| HSN-105 | 8 | 16 | 13.5 |
| HSN-106 | 10 | 19 | 15.1 |
| HSN-107 | 12 | 22 | 17.4 |
| HSN-108 | 14 | 25 | 17.4 |
| HSN-109 | 15 | 25 | 17.4 |
| HSN-110 | 16 | 25 | 17.4 |
| HSN-111 | 18 | 30 | 17.4 |
| HSN-112 | 20 | 32 | 17.4 |
| HSN-113 | 22 | 32 | 17.4 |
| HSN-114 | 25 | 38 | 20.6 |
| HSN-115 | 28 | 46 | 30.6 |
| HSN-116 | 30 | 50 | 32.7 |
| HSN-117 | 32 | 50 | 34.4 |
| HSN-118 | 38 | 60 | 40.6 |
| HSN-119 | 50 | 3 in | 52.3 |
