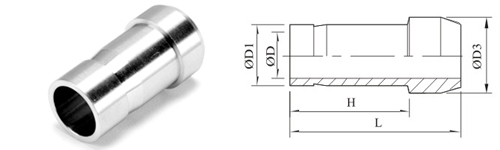

Port Connector
Double Ferrule Compression Tube Fittings
| FOR IMPERIAL TUBE |
|
Part No
|
OD1
Imperial
|
OD
|
H |
L |
OD3 |
| HSPC-101 |
1/16 |
0.75 |
10.66 |
13.7 |
3.30 |
|
HSPC-102
|
1/8 |
2.20 |
15.75 |
22.4 |
6.10 |
|
HSPC-104 |
1/4 |
4.20 |
18.80 |
24.9 |
9.40 |
|
HSPC-105 |
5/16 |
6.00 |
20.06 |
25.9 |
10.92 |
|
HSPC-106
|
3/8 |
7.60 |
20.32 |
26.2 |
12.70 |
| HSPC-107 |
1/2 |
9.90 |
25.90 |
35.8 |
15.75 |
| HSPC-109 |
3/4 |
15.00 |
27.68 |
37.3 |
22.10 |
| HSPC-110 |
1 |
20.30 |
34.54 |
48.1 |
28.45 |
| FOR METRIC TUBE |
|
Part No
|
OD
Tube |
OD |
H |
L |
OD3 |
|
HSPC-111
|
3 |
2.1 |
15.7 |
22.2 |
6.0 |
|
HSPC-112
|
6 |
4.0 |
18.7 |
25.0 |
9.0 |
|
HSPC-113
|
8 |
6.0 |
20.0 |
25.9 |
11.0 |
|
HSPC-114 |
10 |
7.1 |
20.2 |
27.1 |
13.1 |
|
HSPC-115 |
12 |
8.8 |
26.0 |
36.2 |
15.0 |
|
HSPC-116
|
16 |
12.7 |
27.6 |
37.4 |
19.0 |
| HSPC-117 |
18 |
13.9 |
27.6 |
37.4 |
21.1 |
