Bulkhead Union

Double Ferrule Compression Tube Fittings

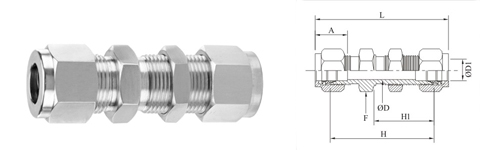

Stainless Steel Double Compression Bulkhead Union Fitting Exporter Manufacturer


FOR IMPERIAL TUBE
PART NO. OD1
Imperial		 OD F HEX A Inch L Inch Panel
Hole Size		 Max Panel
Thickness		 H Inch H1 Inch
HSBU-101 1/16 0.05 5/16 0.34 1.24 13/64 0.12 23.87 13.46
HSBU-102 1/8 0.09 1/2 0.50 2.02 21/64 0.50 38.10 24.63
HSBU-103 3/16 0.12 9/16 0.54 2.11 25/64 0.50 40.38 25.40
HSBU-104 1/4 0.19 5/8 0.60 2.27 29/64 0.40 42.92 46.16
HSBU-106 5/16 0.25 11/16 0.64 2.39 33/64 0.44 45.97 28.44
HSBU-107 3/8 0.28 3/4 0.66 2.45 37/69 0.44 47.49 29.46
HSBU-108 1/2 0.41 15/16 0.90 2.80 49/64 0.50 50.80 31.75
HSBU-109 5/8 0.50 1-1/16 0.96 2.86 57/64 0.50 52.32 32.51
HSBU-110 3/4 0.62 1-3/16 0.96 3.11 11/64 0.66 58.67 37.33
HSBU-111 1 0.88 1-5/8 1.23 3.77 121/64 0.75 71.37 45.21
HSBU-112 1-1/2 1.09 1-7/8 1.62 4.85 141/64 0.75 78.99 47.75
HSBU-113 1-1/2 1.34 2-1/4 1.97 5.48 161/64 0.75 84.83 49.27
HSBU-114 2 1.81 2-3/4 2.66 7.10 241/64 0.75 105.66 56.38




FOR METRIC TUBE
PART NO. OD1
Imperial		 OD F HEX A Inch L Inch Panel
Hole Size		 Max Panel
Thickness		 H Inch H1 Inch
HSBU-115 3 2.4 14 12.9 51.3 8.3 12.7 38.1 24.6
HSBU-116 4 2.4 14 13.2 53.6 9.9 12.7 40.4 25.4
HSBU-117 6 4.8 16 15.3 57.7 11.5 10.2 42.9 26.2
HSBU-118 8 6.4 18 16.2 61.0 13.1 11.2 46.0 28.6
HSBU-119 10 7.9 22 17.2 63.7 16.3 11.2 48.5 29.4
HSBU-120 12 9.5 24 22.8 71.0 19.5 12.7 50.8 31.8
HSBU-121 14 11.1 27 24.4 72.5 22.5 12.7 52.3 32.5
HSBU-122 15 11.9 27 24.4 72.5 22.8 12.7 52.3 32.5
HSBU-123 16 12.7 27 24.4 72.5 22.8 16.8 52.3 32.5
HSBU-124 18 15.1 30 24.4 78.9 26.0 19.0 58.7 37.3
HSBU-125 20 15.9 35 26.0 84.5 29.0 19.0 64.3 42.9
HSBU-126 25 21.8 40 31.2 96.0 33.7 19.0 71.4 45.2
HSBU-127 30 26.2 50 39.6 123.7 40.5 19.0 82.3 49.5
HSBU-127 32 28.6 50 42.0 128.3 42.5 19.0 82.3 49.5
HSBU-128 38 33.7 60 49.4 144.6 50.5 19.0 89.4 51.5
