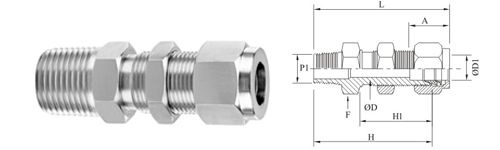

Bulkhead Male Connectore
Double Ferrule Compression Tube Fittings
| FOR IMPERIAL TUBE | |||||||||
| Part No |
OD1 Imperial |
P NPTF |
Od |
F Hex |
L Inch |
Panel Hole Size |
Max Panel Thickmess |
H Inch |
H1 Inch |
| HSBMC-101 | 1/8 | 1/8 | 0.09 | 1/2 | 1.83 | 21/64 | 0.50 | 1.57 | 0.97 |
| HSBMC-102 | 1/4 | 1/8 | 0.09 | 5/8 | 1.95 | 29/64 | 0.40 | 1.66 | 1.03 |
| HSBMC-103 | 1/4 | 1/4 | 0.19 | 5/8 | 2.10 | 29/64 | 0.40 | 1.81 | 1.03 |
| HSBMC-104 | 3/8 | 1/4 | 0.28 | 3/4 | 2.26 | 37/64 | 0.44 | 1.97 | 1.16 |
| HSBMC-105 | 1/2 | 3/8 | 0.37 | 15/16 | 2.49 | 49/64 | 0.50 | 2.09 | 1.25 |
| HSBMC-106 | 1/2 | 1/2 | 0.41 | 15/16 | 2.71 | 49/64 | 0.50 | 2.31 | 1.25 |
