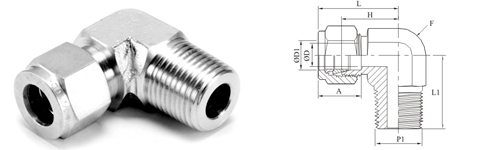

Male Elbow-Tube(Metric) ISO Tapered Thread
Double Ferrule Compression Tube Fittings
| FOR METRIC TUBE | |||||||||
| Part No |
OD1 Metric |
P NPTM |
Od |
F Hex |
H | L | L1 | A | |
| HSMETIT-101 | 3 | R-1/8 | 2.4 | 7/16 | 11.1 | 17.0 | 23.6 | 17.8 | 12.9 |
| HSBFC-102 | 3 | R-1/4 | 2.4 | 1/2 | 12.7 | 18.0 | 24.6 | 23.4 | 12.9 |
| HSMETIT-103 | 4 | R-1/8 | 2.4 | 1/2 | 12.7 | 18.8 | 25.4 | 18.8 | 13.7 |
| HSMETIT-104 | 4 | R-1/4 | 2.4 | 1/2 | 12.7 | 18.8 | 25.4 | 23.4 | 13.7 |
| HSMETIT-105 | 6 | R-1/8 | 4.8 | 1/2 | 12 .7 | 19.6 | 27.0 | 18.8 | 15.3 |
| HSMETIT-106 | 6 | R-1/4 | 4.8 | 1/2 | 12.7 | 19.6 | 27.0 | 23.4 | 15.3 |
| HSMETIT-107 | 6 | R-3/8 | 4.8 | 11/16 | 17.5 | 22.4 | 29.8 | 26.2 | 15.3 |
| HSMETIT-108 | 6 | R-1/2 | 4.8 | 13/16 | 20.6 | 24.4 | 31.8 | 33.0 | 15.3 |
| HSMETIT-109 | 8 | R-1/8 | 4.8 | 9/16 | 14.3 | 21.3 | 28.8 | 19.8 | 16.2 |
| HSMETIT-110 | 8 | R-1/4 | 6.4 | 9/16 | 14.3 | 21.3 | 28.8 | 24.4 | 16.2 |
| HSMETIT-111 | 8 | R-3/8 | 6.4 | 11/16 | 17.5 | 23.1 | 30.6 | 26.2 | 16.2 |
| HSMETIT-112 | 8 | R-1/2 | 6.4 | 13/16 | 20.6 | 25.1 | 32.6 | 33.0 | 16.2 |
| HSMETIT-113 | 10 | R-1/8 | 4.8 | 11/16 | 17.5 | 23.9 | 31.5 | 21.6 | 17.2 |
| HSMETIT-114 | 10 | R-1/4 | 7.1 | 11/16 | 17.5 | 23.9 | 31.5 | 26.2 | 17.2 |
| HSMETIT-115 | 10 | R-3/8 | 7.9 | 11/16 | 17.5 | 23.9 | 31.5 | 26.2 | 17.2 |
| HSMETIT-116 | 10 | R-1/2 | 7.9 | 13/16 | 20.6 | 25.9 | 33.5 | 33.0 | 17.2 |
| HSMETIT-117 | 12 | R-1/8 | 4.8 | 13/16 | 20.6 | 25.9 | 36.0 | 23.6 | 22.8 |
| HSMETIT-118 | 12 | R-1/4 | 7.1 | 13/16 | 20.6 | 25.9 | 36.0 | 28.2 | 22.8 |
| HSMETIT-119 | 12 | R-3/8 | 9.5 | 13/16 | 20.6 | 25.9 | 36.0 | 28.2 | 22.8 |
| HSMETIT-120 | 12 | R-1/2 | 9.5 | 13/16 | 20.6 | 25.9 | 39.8 | 33.0 | 22.8 |
| HSMETIT-121 | 12 | R-3/4 | 9.5 | 11/8 | 28.6 | 29.7 | 38.0 | 36.8 | 22.8 |
| HSMETIT-122 | 16 | R-3/8 | 9.5 | 15/16 | 23.8 | 27.9 | 38.0 | 30.2 | 24.4 |
| HSMETIT-123 | 16 | R-1/2 | 11.9 | 15/16 | 23.8 | 27.9 | 39.8 | 35.1 | 24.4 |
| HSMETIT-124 | 18 | R-1/2 | 11.9 | 11/8 | 28.6 | 29.7 | 39.8 | 36.8 | 24.4 |
| HSMETIT-125 | 18 | R-3/4 | 15.1 | 11/8 | 28.6 | 29.7 | 39.8 | 36.8 | 24.4 |
| HSMETIT-126 | 20 | R-1/2 | 11.9 | 13/8 | 34.9 | 34.5 | 44.6 | 41.7 | 26.0 |
| HSMETIT-127 | 20 | R-3/4 | 15.9 | 13/8 | 34.9 | 34.5 | 44.6 | 41.7 | 26.0 |
| HSMETIT-128 | 22 | R-3/4 | 15.9 | 13/8 | 34.9 | 34.5 | 44.6 | 41.7 | 26.0 |
| HSMETIT-129 | 22 | R-1 | 18.3 | 13/8 | 34.9 | 34.5 | 44.6 | 46.5 | 26.0 |
| HSMETIT-130 | 25 | R-3/4 | 15.9 | 13/8 | 34.9 | 36.8 | 49.1 | 41.7 | 31.3 |
| HSMETIT-131 | 25 | R-1 | 21.8 | 13/8 | 34.9 | 36.8 | 49.1 | 46.5 | 31.3 |
