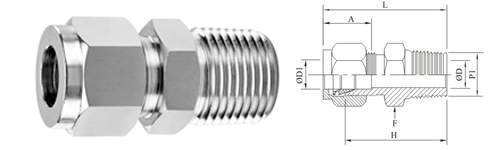

Male Connector (Imperial)
Double Ferrule Compression Tube Fittings
| FOR IMPERIAL TUBE | ||||||||||
| Part No | OD1 Imperial |
P1 NPTM |
Od | F Hex |
A Inch |
L Inch |
H mm |
|||
| HSMC-101 | 1/16 | 1/16 | 0.05 | 5/16 | 0.34 | 0.94 | 20.00 | |||
| HSMC-102 | 1/16 | 1/8 | 0.05 | 7/16 | 0.34 | 1.03 | 22.35 | |||
| HSMC-103 | 1/16 | 1/4 | 0.05 | 9/16 | 0.34 | 1.22 | 27.17 | |||
| HSMC-104 | 1/8 | 1/16 | 0.09 | 7/16 | 0.5 | 1.17 | 23.11 | |||
| HSMC-105 | 1/8 | 1/8 | 0.09 | 7/16 | 0.5 | 1.20 | 23.87 | |||
| HSMC-106 | 1/8 | 1/4 | 0.09 | 9/16 | 0.5 | 1.40 | 28.95 | |||
| HSMC-107 | 1/8 | 3/8 | 0.09 | 11/16 | 0.5 | 1.41 | 29.21 | |||
| HSMC-108 | 1/8 | 1/2 | 0.09 | 7/8 | 0.5 | 1.66 | 35.36 | |||
| HSMC-109 | 3/16 | 1/8 | 0.12 | 7/16 | 0.54 | 7/16 | 24.63 | |||
| HSMC-110 | 3/16 | 1/4 | 0.12 | 9/16 | 0.54 | 9/16 | 29.71 | |||
| HSMC-111 | 1/4 | 1/16 | 0.12 | 1/2 | 0.60 | 1.29 | 25.40 | |||
| HSMC-112 | 1/4 | 1/8 | 0.19 | 1/2 | 0.60 | 1.29 | 25.40 | |||
| HSMC-113 | 1/4 | 1/4 | 0.19 | 9/16 | 0.60 | 1.49 | 30.48 | |||
| HSMC-114 | 1/4 | 3/8 | 0.19 | 11/16 | 0.60 | 1.51 | 30.98 | |||
| HSMC-115 | 1/4 | 1/2 | 0.19 | 7/8 | 0.60 | 1.76 | 37.33 | |||
| HSMC-116 | 1/4 | 3/4 | 0.19 | 11/16 | 0.60 | 1.82 | 38.86 | |||
| HSMC-117 | 5/16 | 1/8 | 0.19 | 11/16 | 0.64 | 1.34 | 26.67 | |||
| HSMC-118 | 5/16 | 1/4 | 0.25 | 9/16 | 0.64 | 1.52 | 31.24 | |||
| HSMC-119 | 5/16 | 3/8 | 0.25 | 11/16 | 0.64 | 1.54 | 31.75 | |||
| HSMC-120 | 5/16 | 1/2 | 0.25 | 7/8 | 0.64 | 1.80 | 38.11 | |||
| HSMC-121 | 3/8 | 1/8 | 0.19 | 9/16 | 0.64 | 1.34 | 26.67 | |||
| HSMC-122 | 3/8 | 1/4 | 0.28 | 5/8 | 0.66 | 1.57 | 32.51 | |||
| HSMC-123 | 3/8 | 3/8 | 0.28 | 11/16 | 0.66 | 1.57 | 32.51 | |||
| HSMC-124 | 3/8 | 1/2 | 0.28 | 7/8 | 0.66 | 1.82 | 38.86 | |||
| HSMC-125 | 3/8 | 3/4 | 0.28 | 11/16 | 0.66 | 1.88 | 40.38 | |||
| HSMC-126 | 1/2 | 1/18 | 0.19 | 13/16 | 0.90 | 1.53 | 28.70 | |||
| HSMC-127 | 1/2 | 1/14 | 0.28 | 13/16 | 0.90 | 1.71 | 33.27 | |||
| HSMC-128 | 1/2 | 3/8 | 0.38 | 13/16 | 0.90 | 1.71 | 33.27 | |||
| HSMC-129 | 1/2 | 1/2 | 0.41 | 7/6 | 0.90 | 1.93 | 38.86 | |||
| HSMC-130 | 1/2 | 3/4 | 0.41 | 1-1/16 | 0.90 | 1.99 | 40.38 | |||
| HSMC-131 | 1/2 | 1 | 0.41 | 1-3/8 | 0.90 | 2.25 | 46.99 | |||
| HSMC-132 | 5/8 | 3/8 | 0.38 | 15/16 | 0.96 | 1.93 |
38.86 | |||
| HSMC-133 | 5/8 | 3/4 | 0.50 | 1-1/16 | 0.96 | 1.99 | 40.38 | |||
| HSMC-134 | 5/8 | 1/2 | 0.47 | 1-1/16 | 0.96 | 1.99 | 40.38 | |||
| HSMC-135 | 3/4 | 1/2 | 0.47 | 1-1/16 | 0.96 | 1.99 | 40.38 | |||
| HSMC-136 | 3/4 | 3/4 | 0.62 | 1-1/16 | 0.96 | 1.99 | 40.38 | |||
| HSMC-137 | 3/4 | 1 | 0.62 | 1-3/8 | 0.96 | 2.25 | 46.99 | |||
| HSMC-138 | 7/8 | 3/4 | 0.62 | 1-3/16 | 1.02 | 1.99 | 40.38 | |||
| HSMC-139 | 7/8 | 1 | 0.72 | 1-3/8 | 1.02 | 2.25 | 46.99 | |||
| HSMC-140 | 1 | 1/2 | 0.47 | 1-3/8 | 1.23 | 2.26 | 45.21 | |||
| HSMC-141 | 1 | 3/4 | 0.62 | 1-3/8 | 1.23 | 2.26 | 45.21 | |||
| HSMC-142 | 1 | 1 | 0.88 | 1-3/8 | 1.23 | 2.45 | 50.03 | |||
| HSMC-143 | 1-1/4 | 1 | 0.88 | 1-3/4 | 1.62 | 3.04 | 55.11 | |||
| HSMC-144 | 1-1/4 | 1-1/4 | 1.09 | 1-3/4 | 1.62 | 3.04 | 55.11 | |||
| HSMC-145 | 1-1/4 | 1-1/2 | 1.34 | 2-1/8 | 1.972.26 | 3.50 | 61.72 | |||
| HSMC-146 | 2 | 2 | 1.81 | 2-3/4 | 2.66 | 4.47 | 76.20 | |||
