Union Elbow

Double Ferrule Compression Tube Fittings

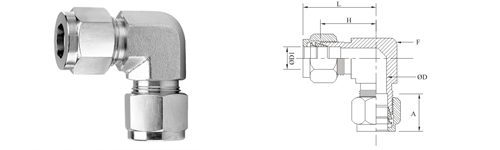

Stainless Steel Double Compression Union Elbow Fitting Exporter Manufacturer


FOR IMPERIAL TUBE
Part No OD1
Imperial 		OD F
Hex 		A
Inch 		L
Inch 		H
mm
HSUE-101 1/16 0.05 1/2 0.34 0.70 14.00
HSUE-102 1/8 0.09 1/2 0.50 0.88 15.74
HSUE-103 3/16 0.12 1/2 0.54 1.00 17.78
HSUE-104 1/4 0.19 1/2 0.60 1.06 19.55
HSUE-105 5/16 0.25 9/16 0.64 1.13 21.84
HSUE-106 3/8 0.28 5/8 0.66 1.20 23.11
HSUE-107 1/2 0.41 13/16 0.90 1.42 25.90
HSUE-108 5/8 0.50 15/16 0.96 1.50 28.70
HSUE-109 3/4 0.62 1-1/16 0.96 1.57 29.71
HSUE-110 7/8 0.72 1-1/4 1.02 1.76 34.54
HSUE-111 1 0.88 1-3/8 1.23 1.93 36.83
HSUE-112 1-1/4 1.09 1-11/16 1.62 2.67 44.50
HSUE-113 1-1/2 1.34 2 1.97 3.10 50.80
HSUE-114 2 1.81 2-3/4 2.66 4.22 69.80


FOR METRIC TUBE
Part No OD1
Metric		 OD F
Hex 		A
mm		 L
mm		 H
mm
HSUE-101 3 2.4 12.7 12.9 22.3 15.7
HSUE-102 4 2.4 12.7 13.7 25.4 18.8
HSUE-103 6 4.8 12.7 15.3 27.0 19.6
HSUE-104 8 6.4 14.3 16.2 28.8 21.3
HSUE-105 10 7.9 17.5 17.2 31.5 23.9
HSUE-106 12 9.5 20.6 22.8 36.0 25.9
HSUE-107 14 11.1 23.8 24.4 38.0 28.7
HSUE-108 15 11.9 23.8 24.4 38.0 28.7
HSUE-109 16 12.7 23.8 24.4 38.0 28.7
HSUE-110 18 15.1 26.98 24.4 39.8 29.7
HSUE-111 20 15.9 32 26.0 44.6 32.5
HSUE-112 22 18.3 32 26.0 44.6 32.5
HSUE-113 25 21.8 36 31.3 49.1 36.8
HSUE-114 28 21.8 42 36.6 64.0 43.2
HSUE-115 30 26.2 46 39.6 69.9 43.2
HSUE-116 32 28.6 46 42.0 72.3 49.3
HSUE-117 38 33.7 55 49.4 84.0 56.4
HSUE-118 50 45.2 68.85 65.0 105.7 69.80
