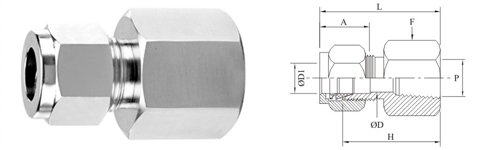

Metric Female Connector
Double Ferrule Compression Tube Fittings
| FOR METRIC TUBE | |||||||||
| Part No |
OD1 Metric |
P NPTM |
Od |
F Hex |
A mm |
L mm |
H mm |
||
| HSFC-132 | 3 | 1/8 | 2.4 | 14 | 12.9 | 28.7 | 22.1 | ||
| HSFC-133 | 3 | 1/4 | 2.4 | 19 | 12.9 | 33.5 | 26.9 | ||
| HSFC-134 | 4 | 1/8 | 2.4 | 14 | 13.7 | 29.7 | 23.1 | ||
| HSFC-135 | 6 | 1/8 | 4.8 | 14 | 15.3 | 31.3 | 23.9 | ||
| HSFC-136 | 6 | 1/4 | 4.8 | 19 | 15.3 | 35.8 | 28.4 | ||
| HSFC-137 | 6 | 3/8 | 4.8 | 22 | 15.3 | 37.6 | 29.5 | ||
| HSFC-138 | 6 | 1/2 | 4.8 | 27 | 15.3 | 42.5 | 35.1 | ||
| HSFC-139 | 8 | 1/8 | 6.4 | 14 | 16.2 | 32.1 | 24.6 | ||
| HSFC-140 | 8 | 1/5 | 6.4 | 19 | 16.2 | 37.1 | 29.5 | ||
| HSFC-141 | 8 | 3/8 | 6.4 | 22 | 16.2 | 38.5 | 30.2 | ||
| HSFC-142 | 8 | 1/2 | 6.4 | 27 | 16.2 | 43.3 | 35.8 | ||
| HSFC-143 | 10 | 1/4 | 7.9 | 19 | 17.2 | 37.8 | 30.2 | ||
| HSFC-144 | 10 | 3/8 | 7.9 | 22 | 17.2 | 39.4 | 31.0 | ||
| HSFC-145 | 10 | 1/2 | 7.9 | 27 | 17.2 | 44.2 | 36.6 | ||
| HSFC-146 | 12 | 1/4 | 9.5 | 22 | 22.8 | 40.3 | 30.2 | ||
| HSFC-147 | 12 | 3/8 | 9.5 | 22 | 22.8 | 41.9 | 31.0 | ||
| HSFC-148 | 12 | 1/2 | 9.5 | 27 | 22.8 | 46.7 | 36.6 | ||
| HSFC-149 | 15 | 1/2 | 11.9 | 27 | 24.4 | 46.7 | 36.6 | ||
| HSFC-150 | 16 | 1/2 | 12.7 | 27 | 24.4 | 46.9 | 36.8 | ||
| HSFC-151 | 20 | 1/2 | 15.9 | 30 | 26.0 | 47.9 | 37.8 | ||
| HSFC-152 | 20 | 3/4 | 15.9 | 35 | 26.0 | 49.7 | 39.6 | ||
| HSFC-153 | 22 | 3/4 | 18.3 | 35 | 26.0 | 49.7 | 39.6 | ||
| HSFC-154 | 22 | 1 | 18.3 | 41 | 26.0 | 57.9 | 47.8 | ||
| HSFC-155 | 25 | 3/4 | 21.8 | 35 | 31.3 | 53.5 | 41.1 | ||
| HSFC-156 | 25 | 1 | 21.8 | 41 | 31.3 | 62.3 | 62.3 | ||
