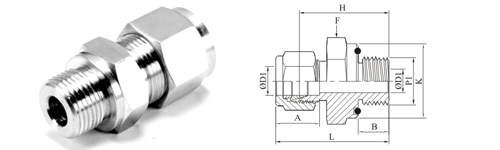

Male Connector ISO Tapered Thread
Double Ferrule Compression Tube Fittings
| FOR IMPERIAL TUBE | ||||||||
| Part No | OD1 Imperial |
P1 BSPTM |
Od | F Hex |
H | L | A | |
| HSMCITT-101 | 1/8 | R-1/8 | 2.28 | 7/16 | 11.1 | 23.90 | 30.48 | 12.70 |
| HSMCITT-102 | 1/8 | R-1/4 | 2.28 | 9/16 | 14.3 | 28.95 | 35.56 | 12.70 |
| HSMCITT-103 | 1/4 | R-1/8 | 4.82 | 1/2 | 12.7 | 25.40 | 32.76 | 15.20 |
| HSMCITT-104 | 1/4 | R-1/4 | 4.82 | 9/16 | 14.3 | 30.50 | 37.85 | 15.20 |
| HSMCITT-105 | 1/4 | R-1/8 | 4.82 | 11/16 | 17.5 | 30.78 | 38.85 | 15.20 |
| HSMCITT-106 | 1/4 | R-1/8 | 4.82 | 7/8 | 22.2 | 37.34 | 44.70 | 15.20 |
| HSMCITT-107 | 5/16 | R-1/8 | 4.82 | 9/16 | 14.3 | 26.67 | 34.03 | 16.20 |
| HSMCITT-108 | 5/16 | R-1/4 | 6.35 | 9/16 | 14.3 | 31.24 | 38.60 | 16.20 |
| HSMCITT-109 | 3/8 | R-1/8 | 4.82 | 5/8 | 15.9 | 27.90 | 35.30 | 16.80 |
| HSMCITT-110 | 3/8 | R-1/4 | 7.11 | 5/8 | 15.9 | 32.51 | 39.87 | 16.80 |
| HSMCITT-111 | 3/8 | R-3/8 | 7.11 | 11/16 | 17.5 | 32.51 | 39.87 | 16.80 |
| HSMCITT-112 | 3/8 | R-1/2 | 7.11 | 7/8 | 22.2 | 38.90 | 46.23 | 16.80 |
| HSMCITT-113 | 1/2 | R-1/4 | 7.11 | 13/16 | 20.6 | 33.27 | 43.43 | 22.90 |
| HSMCITT-114 | 1/2 | R-3/8 | 9.65 | 13/16 | 20.6 | 33.27 | 43.43 | 22.90 |
| HSMCITT-115 | 1/2 | R-1/2 | 10.41 | 7/8 | 22.2 | 38.90 | 49.02 | 22.90 |
| HSMCITT-116 | 1/2 | R-3/4 | 10.41 | 1 1/16 | 27.0 | 40.38 | 50.54 | 22.90 |
| HSMCITT-117 | 3/4 | R-3/4 | 15.74 | 1 1/16 | 27.0 | 40.38 | 50.54 | 24.40 |
| HSMCITT-118 | 1 | R-1 | 22.35 | 1 3/8 | 34.9 | 50.03 | 62.23 | 31.20 |
