Male Connector Tube Metric ISO Tapered Thread

Double Ferrule Compression Tube Fittings

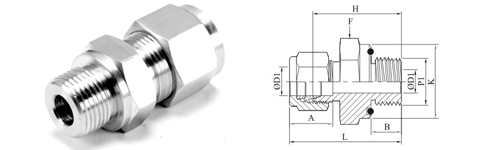

Stainless Steel Double Compression Male Connector Tube Metric ISO Tapered Thread Fitting Exporter Manufacturer


FOR IMPERIAL TUBE
Part No OD1
Imperial 		P1
BSPTM 		Od F
Hex 		H L A
HSMCTITT-101 1/8 R-1/8 2.28 7/16 11.1 23.90 30.48 12.70
HSMCTITT-102 1/8 R-1/4 2.28 9/16 14.3 28.95 35.56 12.70
HSMCTITT-103 1/4 R-1/8 4.82 1/2 12.7 25.40 32.76 15.20
HSMCTITT-104 1/4 R-1/4 4.82 9/16 14.3 30.50 37.85 15.20
HSMCTITT-105 1/4 R-3/8 4.82 11/16 17.5 30.78 38.35 15.20
HSMCTITT-106 1/4 R-1/2 4.82 7/8 22.2 37.34 44.70 15.20
HSMCTITT-107 5/16 R-1/8 4.82 9/16 14.3 26.67 34.03 16.20
HSMCTITT-108 5/16 R-1/4 6.35 9/16 14.3 31.24 38.60 16.20
HSMCTITT-109 3/8 R-1/8 4.82 5/8 15.9 27.90 35.30 16.80
HSMCTITT-110 3/8 R-1/4 7.11 5/8 15.9 32.51 39.87 16.80
HSMCTITT-111 3/8 R-3/8 7.11 11/16 17.5 32.51 39.87 16.80
HSMCTITT-112 3/8 R-1/2 7.11 7/8 22.2 38.90 46.23 16.80
HSMCTITT-113 1/2 R-1/4 7.11 13/16 20.6 33.27 43.43 22.90
HSMCTITT-114 1/2 R-3/8 9.65 13/16 20.6 33.27 43.43 22.90
HSMCTITT-115 1/2 R-1/2 10.41 7/8 22.2 38.90 49.02 22.90
HSMCTITT-116 1/2 R-3/4 10.41 1 1/16 27.0 40.38 50.54 22.90
HSMCTITT-117 3/4 R-3/4 15.74 1 1/16 27.0 40.38 50.54 24.40
HSMCTITT-118 1 R-1 22.35 1 3/8 34.9 50.03 62.23 31.20




FOR METRIC TUBE
Part No OD1
Metric		 P1
BSPTM 		Od F
Hex 		H L A
HSMCTITT-119 2 R-1/8 1.7 12 23.9 30.5 12.9
HSMCTITT-120 3 R-1/8 2.4 12 23.9

30.5

 12.9
HSMCTITT-121 3 R-1/4 2.4 14 29.0 35.6 12.9
HSMCTITT-122 4 R-1/8 2.4 12 24.6 31.2 13.7
HSMCTITT-123 4 R-1/4 2.4 14 29.7 36.3 13.7
HSMCTITT-124 6 R-1/8 4.8 14 25.4 32.8 15.3
HSMCTITT-125 6 R-1/4 4.8 41 30.5 37.9 15.3
HSMCTITT-126 6 R-3/8 4.8 18 31.0 38.4 15.3
HSMCTITT-127 6 R-1/2 4.8 22 37.3 44.7 15.3
HSMCTITT-128 8 R-1/8 4.8 15 26.7 34.2 16.2
HSMCTITT-129 8 R-1/4 6.4 15 31.2 38.7 16.2
HSMCTITT-130 8 R-3/8 6.4 18 31.8 39.2 16.2
HSMCTITT-131 8 R-1/2 6.4 22 38.1 45.6 16.2
HSMCTITT-132 10 R-1/8 4.8 18 28.7 36.3 17.2
HSMCTITT-133 10 R-1/4 7.9 18 33.3 40.9 17.2
HSMCTITT-134 10 R-3/8 7.9 18 33.3 40.9 17.2
HSMCTITT-135 10 R-1/2 7.9 22 38.9 46.5 17.2
HSMCTITT-136 12 R-1/4 7.1 22 33.3 43.4 22.8
HSMCTITT-137 12 R-3/8 9.5 22 33.3 43.4 22.8
HSMCTITT-138 12 R-1/2 9.5 22 38.9 49.0 22.8
HSMCTITT-139 12 R-3/4 9.5 27 40.4 50.5 22.8
HSMCTITT-140 15 R-1/2 11.9 24 38.9 49.0 24.4
HSMCTITT-141 16 R-1/4 7.1 24 34.0 44.1 24.4
HSMCTITT-142 16 R-3/8 9.5 24 34.0 44.1 24.4
HSMCTITT-143 16 R-1/2 11.9 24 38.9 49.0 24.4
HSMCTITT-144 16 R-3/4 12.7 27 40.4 50.5 24.4
HSMCTITT-145 18 R-1/2 11.9 27 40.4 50.5 24.4
HSMCTITT-146 18 R-3/4 15.1 27 40.4 50.5 24.4
HSMCTITT-147 20 R-1/2 11.9 30 42.2 52.3 26.0
HSMCTITT-148 20 R-3/4 15.9 30 42.2 52.3 26.0
HSMCTITT-149 22 R-3/4 15.9 30 42.2 52.3 26.0
HSMCTITT-150 22 R-1 18.3 35 47.0 57.1 26.0
HSMCTITT-151 25 R-3/4 15.9 35 45.2 57.5 31.3
HSMCTITT-152 25 R-1 21.8 35 50.0 62.3 31.3
