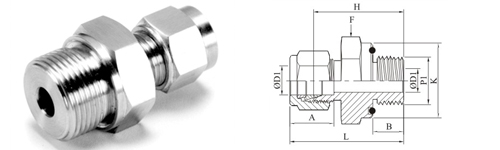

Male Connector-O-Seal Male Unf Thread
Double Ferrule Compression Tube Fittings
| FOR IMPERIAL TUBE | ||||||||||
| Part No | OD1 Imperial |
P1 T-UNF |
Od | K | F Hex |
H | B | L | A | |
| HSMCOS-101 | 1/16 | 5/16-24 | 1.27 | 14.0 | 9/16 | 14.3 | 22.86 | 8.63 | 2.67 | 8.63 |
| HSMCOS-102 | 1/8 | 5/16-24 | 2.28 | 14.0 | 9/16 | 14.3 | 26.20 | 8.63 | 32.77 | 12.70 |
| HSMCOS-103 | 3/16 | 3/8-24 | 3.04 | 15.75 | 5/8 | 15.9 | 27.70 | 9.65 | 34.29 | 13.72 |
| HSMCOS-104 | 1/4 | 7/16-20 | 4.22 | 18.80 | 3/4 | 19.1 | 31.00 | 10.41 | 38.35 | 15.24 |
| HSMCOS-105 | 5/16 | 1/2-20 | 6.35 | 21.84 | 7/8 | 22.2 | 33.30 | 11.17 | 40.64 | 16.25 |
| HSMCOS-106 | 3/8 | 9/16-18 | 7.11 | 23.62 | 15/16 | 23.8 | 35.05 | 11.93 | 40.89 | 16.76 |
| HSMCOS-107 | 1/2 | 3/4-16 | 10.41 | 28.45 | 1 1/8 | 28.6 | 35.81 | 11.93 | 45.77 | 22.86 |
| HSMCOS-108 | 3/4 | 1 1/16-12 | 15.74 | 37.85 | 1 1/2 | 38.1 | 42.20 | 14.22 | 52.32 | 24.38 |
| HSMCOS-109 | 1 | 1 5/16-12 | 22.35 | 44.20 | 1 3/4 | 44.5 | 45.97 | 14.22 | 58.17 | 31.24 |
