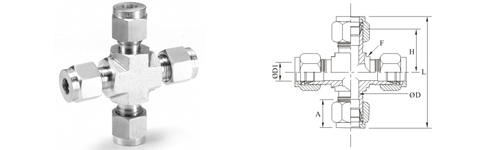

Union Cross
Double Ferrule Compression Tube Fittings
| FOR IMPERIAL TUBE | ||||||||||
| Part No |
OD1 Imperial |
OD | F Hex |
A Inch |
L Inch |
H mm |
||||
| HSUC-101 | 1/8 | 0.09 | 5/8 | 0.50 | 1.76 | 15.74 | ||||
| HSUC-102 | 1/4 | 0.19 | 5/8 | 0.80 | 2.12 | 19.55 | ||||
| HSUC-103 | 5/16 | 0.25 | 5/8 | 0.64 | 2.34 | 21.33 | ||||
| HSUC-104 | 3/8 | 0.28 | 11/16 | 0.66 | 2.4 | 23.11 | ||||
| HSUC-105 | 1/2 | 0.41 | 7/8 | 0.90 | 2.84 | 25.90 | ||||
| HSUC-106 | 3/4 | 0.62 | 1-1/16 | 0.96 | 3.14 | 29.71 | ||||
| HSUC-107 | 1 | 0.88 | 1-3/8 | 1.23 | 3.86 | 36.83 | ||||
| FOR METRIC TUBE | ||||||||||
| Part No |
OD1 Metric |
OD | F Hex |
A mm |
L mm |
H mm |
||||
| HSUC-101 | 3 | 2.4 | 15 | 12.9 | 44.7 | 15.7 | ||||
| HSUC-102 | 6 | 4.8 | 15 | 15.3 | 53.9 | 19.6 | ||||
| HSUC-103 | 8 | 6.4 | 15 | 16.2 | 59.7 | 21.3 | ||||
| HSUC-104 | 10 | 7.9 | 17.5 | 17.2 | 67.0 | 23.9 | ||||
| HSUC-105 | 12 | 9.5 | 22 | 22.8 | 72.0 | 25.9 | ||||
| HSUC-106 | 16 | 12.7 | 27 | 24.4 | 74.0 | 28.7 | ||||
| HSUC-107 | 18 | 15.1 | 27 | 24.4 | 76.6 | 29.7 | ||||
| HSUC-108 | 20 | 15.9 | 32 | 26.0 | 89.3 | 32.5 | ||||
| HSUC-109 | 25 | 21.8 | 36 | 31.3 | 98.3 | 36.8 | ||||
