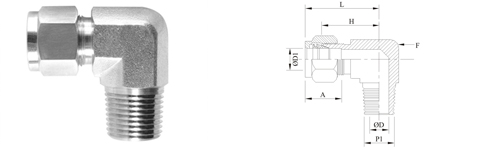

Male Elbow (Imperial)
Double Ferrule Compression Tube Fittings
| FOR IMPERIAL TUBE | |||||||
| Part No | OD1 Imperial |
P1 NPTM |
Od | F Hex |
A Inch |
L Inch |
H mm |
| HSME-101 | 1/16 | 1/16 | 0.05 | 9/16 | 0.34 | 0.75 | 15.24 |
| HSME-102 | 1/16 | 1/8 | 0.05 | 9/16 | 0.34 | 0.75 | 15.24 |
| HSME-103 | 1/8 | 1/16 | 0.09 | 9/16 | 0.50 | 0.93 | 18.30 |
| HSME-104 | 1/8 | 1/8 | 0.09 | 9/16 | 0.50 | 0.93 | 18.30 |
| HSME-105 | 1/18 | 1/4 | 0.09 | 9/16 | 0.54 | 0.97 | 18.30 |
| HSME-106 | 3/16 | 1/8 | 0.12 | 9/16 | 0.54 | 1.00 | 18.79 |
| HSME-107 | 3/16 | 1/4 | 0.12 | 9/16 | 0.60 | 1.00 | 18.79 |
| HSME-108 | 1/4 | 1/16 | 0.12 | 9/16 | 0.60 | 1.06 | 19.55 |
| HSME-109 | 1/4 | 1/8 | 0.19 | 9/16 | 0.60 | 1.06 | 19.10 |
| HSME-110 | 1/4 | 1/4 | 0.19 | 9/16 | 0.60 | 1.06 | 19.81 |
| HSME-111 | 1/4 | 3/8 | 0.19 | 11/16 | 0.60 | 1.17 | 22.35 |
| HSME-112 | 1/4 | 1/2 | 0.19 | 13/16 | 0.64 | 1.25 | 24.60 |
| HSME-113 | 5/16 | 1/8 | 0.19 | 9/16 | 0.64 | 1.13 | 21.33 |
| HSME-114 | 5/16 | 1/4 | 0.25 | 9/16 | 0.64 | 1.13 | 21.33 |
| HSME-115 | 5/16 | 3/8 | 0.25 | 11/16 | 0.66 | 1.20 | 23.11 |
| HSME-116 | 3/8 | 1/8 | 0.19 | 5/8 | 0.66 | 1.20 | 23.11 |
| HSME-117 | 3/8 | 1/4 | 0.28 | 5/8 | 0.66 | 1.20 | 23.11 |
| HSME-118 | 3/8 | 3/8 | 0.28 | 11/16 | 0.66 | 1.23 | 23.87 |
| HSME-119 | 3/8 | 1/2 | 0.28 | 13/16 | 0.66 | 1.31 | 25.90 |
| HSME-120 | 3/8 | 3/4 | 0.28 | 1-1/16 | 0.90 | 1.46 | 29.71 |
| HSME-121 | 1/2 | 1/4 | 0.28 | 13/16 | 0.90 | 1.42 | 25.90 |
| HSME-122 | 1/2 | 3/8 | 0.38 | 13/16 | 0.90 | 1.42 | 25.90 |
| HSME-123 | 1/2 | 1/2 | 0.41 | 13/16 | 0.90 | 1.42 | 25.90 |
| HSME-124 | 1/2 | 3/4 | 0.41 | 1-1/16 | 0.90 | 1.57 | 29.71 |
| HSME-125 | 5/8 | 3/8 | 0.38 | 15/16 | 0.96 | 1.50 | 28.00 |
| HSME-126 | 5/8 | 1/2 | 0.47 | 15/16 | 0.96 | 1.50 | 28.00 |
| HSME-127 | 5/8 | 3/4 | 0.50 | 1-1/16 | 0.96 | 1.57 | 29.71 |
| HSME-128 | 3/4 | 1/2 | 0.47 | 1-1/16 | 0.96 | 1.57 | 29.71 |
| HSME-129 | 3/4 | 3/4 | 0.62 | 1-1/16 | 0.96 | 1.57 | 29.71 |
| HSME-130 | 7/8 | 3/4 | 0.62 | 1-3/8 | 1.02 | 1.76 | 34.54 |
| HSME-131 | 1 | 3/4 | 0.62 | 1-3/8 | 1.23 | 1.93 | 36.83 |
| HSME-132 | 1 | 1 | 0.88 | 1-3/8 | 1.23 | 1.93 | 36.83 |
| HSME-133 | 1-1/4 | 1-1/4 | 1.09 | 1-1/16 | 1.62 | 2.67 | 44.50 |
| HSME-134 | 1-1/2 | 1-1/2 | 1.34 | 2 | 1.97 | 3.10 | 50.80 |
| HSME-135 | 2 | 2 | 1.81 | 2-3/4 | 2.66 | 4.22 | 69.80 |
