Union

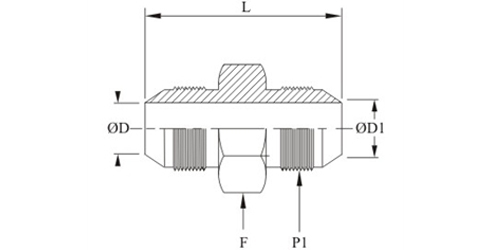

37 Degree Flare Fittings
| FOR IMPERIAL TUBE | ||||||
| Part No | Tube OD1 mm in |
OD mm |
L mm | F HEX |
P1 JIC |
|
| HSU-02 | - | 1/8 | 1.6 | 29.7 | 11 | 5/16-24 |
| HSU-03 | - | 3/16 | 3.2 | 31.2 | 11 | 3/8-24 |
| HSU-6M/04 | 6 | 1/4 | 4.4 | 34.8 | 12.5 | 7/16-20 |
| HSU-08M/05 | 8 | 5/16 | 6.0 | 34.8 | 14 | 1/2-20 |
| HSU-10M/06 | 10 | 3/8 | 7.5 | 35.8 | 16 | 9/16-18 |
| HSU-12M/08 | 12 | 1/2 | 9.9 | 41.1 | 20.5 | 3/4-16 |
| HSU-16M/10 | 16 | 5/8 | 12.3 | 47.8 | 24 | 7/8-14 |
| HSU-18M/12 | 18 | 3/4 | 15.5 | 54.9 | 28 | 13/16-12 |
| HSU-20M/14 | 20 | 7/8 | 18.3 | 56.1 | 32 | 13/16-12 |
| HSU-25M/16 | 25 | 1 | 21.5 | 57.2 | 35 | 15/16-12 |
| HSU-32M/20 | 32 | 11/4 | 27.5 | 61.7 | 41 | 15/8-12 |
| HSU-38M/24 | 38 | 11/2 | 33.0 | 69.8 | 50 | 17/8-12 |
| HSU-32 | - | 2 | 45.0 | 86.4 | 65 | 21/2-12 |
