45 Degree Bulkhead Elbow

37 Degree Flare Fittings

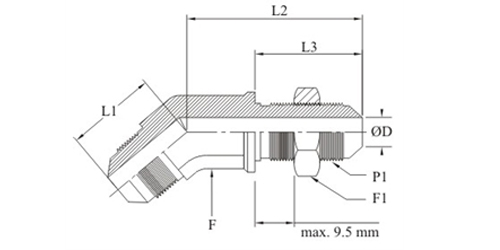

Stainless Steel 37 Degree Flare 45 Degree Bulkhead Elbow Fittings Exporter


Part No Tube OD1
mm       in 		OD
mm 		L1
mm 		L2
mm 		L3
mm 		F
HEX 		F1
HEX 		P1
JIC
HSDBE-101 6 1/4 4.4 19.5 39 28.3 11 17 7/16-20
HSDBE-102 8 5/16 6 20 41 28.3 14 19 1/2-20
HSDBE-103 10 3/8 7.5 21.5 43 30.1 14 22 9/16-18
HSDBE-104 12 1/2 9.9 25.5 49.5 35 19 24 3/4-16
HSDBE-105 16 5/8 12.3 29 55 38.5 22 30 7/8-14
HSDBE-106 18 3/4 15.5 33 62 42.8 27 36 1 1/16-12
HSDBE-107 25 1 21.5 38 65 42.8 33 41 1 5/16-12
HSDBE-108 32 1 1/4 27.5 40 67 44.1 41 50 1 5/8-12
HSDBE-109 38 1 1/2 33 46 68 44.3 48 55 1 7/8-12
