Male Connector
37 Degree Flare Fittings

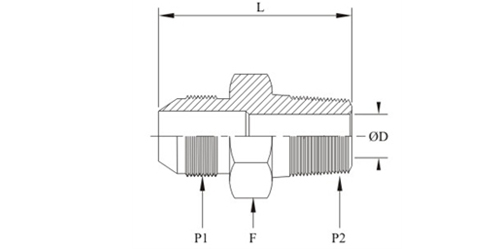

| MALE CONNECTOR | |||||||
| Part No |
Tube OD1 mm in |
OD mm |
L mm |
F Hex |
P2 NPT |
P1 JIC |
|
| HSMC-101 | - | 1/8 | 1.6 | 28.2 | 11 | 1/8 | 5/16-24 |
| HSMC -102 | - | 3/16 | 3.2 | 29.0 | 11 | 1/8 | 3/8-24 |
| HSMC-103 | 6 | 1/4 | 4.4 | 31.0 | 12.5 | 1/8 | 7/16-20 |
| HSMC-104 | 6 | 1/4 | 4.4 | 36.0 | 14 | 1/4 | 7/16-20 |
| HSMC-105 | 6 | 1/4 | 4.4 | 42.7 | 22 | 1/2 | 7/16-20 |
| HSMC-106 | 8 | 5/16 | 4.8 | 31.0 | 14 | 1/8 | 1/2-20 |
| HSMC-107 | 8 | 5/16 | 6.0 | 36.1 | 14 | 1/4 | 1/2-20 |
| HSMC-108 | 10 | 3/8 | 4.8 | 31.8 | 16 | 1/8 | 9/16-18 |
| HSMC-109 | 10 | 3/8 | 7.1 | 36.3 | 16 | 1/4 | 9/16-18 |
| HSMC-110 | 10 | 3/8 | 7.5 | 36.3 | 19 | 3/8 | 9/16-18 |
| HSMC-111 | 10 | 3/8 | 7.5 | 42.5 | 22 | 1/2 | 9/16-18 |
| HSMC-112 | 12 | 1/2 | 7.1 | 38.9 | 20.5 | 1/4 | 3/4-16 |
| HSMC-113 | 12 | 1/2 | 9.5 | 38.9 | 20.5 | 3/8 | 3/4-16 |
| HSMC-114 | 12 | 1/2 | 9.9 | 45.4 | 22 | 1/2 | 3/4-16 |
| HSMC-115 | 12 | 1/2 | 9.9 | 47.0 | 28 | 3/4 | 3/4-16 |
| HSMC-116 | 16 | 5/8 | 9.9 | 43.1 | 24 | 3/8 | 7/8-14 |
| HSMC-117 | 16 | 5/8 | 11.9 | 48.0 | 24 | 1/2 | 7/8-14 |
| HSMC-118 | 16 | 5/8 | 12.3 | 49.5 | 28 | 3/4 | 7/8-14 |
| HSMC-119 | 18 | 3/4 | 15.5 | 52.3 | 28 | 3/4 | 11/16-12 |
| HSMC-120 | 18 | 3/4 | 15.5 | 57.1 | 35 | 1 | 11/16-12 |
| HSMC-121 | 20 | 7/8 | 18.3 | 53.1 | 32 | 3/4 | 13/16-12 |
| HSMC-122 | 25 | 1 | 18.3 | 53.5 | 35 | 3/4 | 15/16-12 |
| HSMC-123 | 25 | 1 | 21.5 | 58.4 | 35 | 1 | 15/16-12 |
| HSMC-124 | 32 | 11/4 | 21.5 | 61.5 | 41 | 1 | 15/8-12 |
| HSMC-125 | 32 | 11/4 | 27.5 | 62.2 | 41 | 11/4 | 15/8-12 |
| HSMC-126 | 38 | 11/2 | 32.0 | 68.1 | 50 | 11/4 | 17/8-12 |
| HSMC-127 | 38 | 11/2 | 33.0 | 68.1 | 50 | 11/2 | 17/8-12 |
| HSMC-128 | - | 2 | 45.0 | 79.0 | 65 | 2 | 21/2-12 |
