Adjustable Male Run Tee O Ring SAE Thread

37 Degree Flare Fittings

Stainless Steel 37 Degree Flare 45 Degree Adjustable Male Run Tee O Ring SAE Thread Fittings Exporter

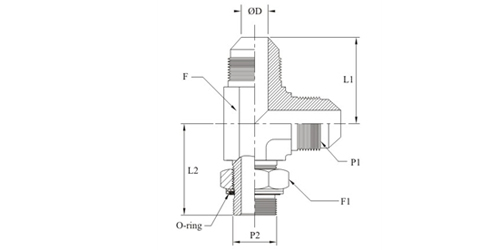

O RING WITH SAE THREAD
Part No Tube OD1
mm       in 		OD
mm 		L1
mm 		L2
mm 		F
HEX 		F1
HEX		 P2
SAE		 P1
JIC
HSAMERST-101 6 1/4 4.4 23 27 12 14 7/16-20 7/16-20
HSAMERST-102 6 1/4 4.8 24 29 14 17 1/2-20 7/16-20
HSAMERST-103 6 1/4 6.5 24 32 17 17 9/16-18 7/16-20
HSAMERST-104 8 5/16 4.8 24 29 14 17 1/2-20 1/2-20
HSAMERST-105 8 5/16 7.1 24 32 17 17 9/16-18 1/2-20
HSAMERST-106 10 3/8 7.1 27.5 28 17 14 7/16-20 9/16-18
HSAMERST-107 10 3/8 6.5 27.5 29 17 17 1/2-20 9/16-18
HSAMERST-108 10 3/8 7.1 27.5 32 17 17 9/16-18 9/16-18
HSAMERST-109 10 3/8 7.1 29.5 37 22 22 3/4-16 9/16-18
HSAMERST-111 10 3/8 7.1 31.5 43 24 27 7/8-14 9/16-18
HSAMERST-112 12 1/2 7.1 32 36.5 22 17 9/16-18 3/4-16
HSAMERST-113 12 1/2 9.5 32 37 22 22 3/4-16 3/4-16
HSAMERST-114 12 1/2 11.9 34 43 24 27 7/8-14 3/4-16
HSAMERST-115 12 1/2 11.9 36 49.5 28 32 1 1/16-12 3/4-16
HSAMERST-116 16 5/8 11.9 37 39.5 24 22 3/4-16 7/8-14
HSAMERST-117 16 5/8 11.9 37 43 24 27 7/8-14 7/8-14
HSAMERST-118 16 5/8 12.5 39 49.5 28 32 1 1/16-12 7/8-14
HSAMERST-119 18 3/4 11.9 42 41.5 28 22 3/4-16 1 1/16-12
HSAMERST-120 18 3/4 11.9 42 47 28 27 7/8-14 1 1/16-12
HSAMERST-121 18 3/4 15.5 42 49.5 28 32 1 1/16-12 1 1/16-12
HSAMERST-122 18 3/4 17.5 45 52 35 41 1 5/16-12 1 1/16-12
HSAMERST-123 25 1 16 46 49.5 35 32 1 1/16-12 1 5/16-12
HSAMERST-124 25 1 21.5 46 52 35 41 1 5/16-12 1 5/16-12
HSAMERST-125 25 1 22 52 58 41 50 1 5/8-12 1 5/16-12
HSAMERST-126 32 1 1/4 27.5 53 58 41 50 1 5/8-12 1 5/8-12
HSAMERST-127 38 1 1/2 33 59 60 48 55 1 5/8-12 1 7/8-12
