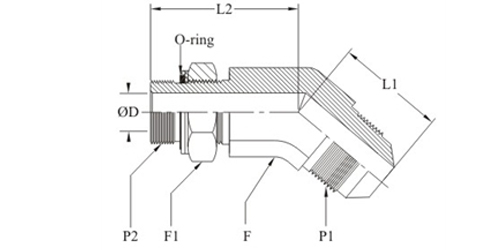

45 Degree Adjustable Male Elbow O Ring And Washer

37 Degree Flare Fittings

Stainless Steel 37 Degree Flare 45 Degree Adjustable Male Elbow O Ring And Washer Fittings Exporter


FOR IMPERIAL TUBE
Part No Tube OD1
mm       in 		OD
mm 		L1
mm 		L2
mm 		F
HEX 		HEX P2
METRIC		 P1
JIC
HSDAMERW-101 6 1/4 4.8 19.5 27 11 14 10x1 7/16-20
HSDAMERW-102 6 1/4 4.8 20 27 14 17 12x1.5 7/16-20
HSDAMERW-103 8 5/16 4.8 20 24 14 14 10x1 1/2-20
HSDAMERW-104 8 5/16 6 20 27 14 17 14x1.5 1/2-20
HSDAMERW-105 8 5/16 6 20 28 14 19 12x1.5 1/2-20
HSDAMERW-106 10 3/8 7 21.5 28 14 19 14x1.5 9/16-20
HSDAMERW-107 10 3/8 7 23 33 19 22 16x1.5 9/16-20
HSDAMERW-108 12 1/2 8 25.5 33 19 22 16x1.5 3/4-16
HSDAMERW-109 12 1/2 8 25.5 33 19 24 18x1.5 3/4-16
HSDAMERW-110 16 5/8 8 29 34.5 22 24 18x1.5 7/8-14
HSDAMERW-111 16 5/8 10 29 38 22 27 20x1.5 7/8-14
HSDAMERW-112 16 5/8 11.9 29 38 22 27 22x1.5 7/8-14
HSDAMERW-113 18 3/4 11.5 33 41.5 27 27 22x1.5 1 1/16-12
HSDAMERW-114 18 3/4 15 33 46 27 32 27x2 1 1/16-12
HSDAMERW-115 25 1 15 38 46 33 32 27x2 1 5/16-12
HSDAMERW-116 25 1 19 38 46 33 41 33x2 1 5/16-12
HSDAMERW-117 32 1 1/4 26 40 48 41 50 42x2 1 5/8-12
HSDAMERW-118 38 1 1/2 32 46 50 48 55 48x2 1 7/8-12

Double Compression Fittings

Enquiry For
45 Degree Adjustable Male Elbow O Ring And Washer
