Adjustable Male O Ring And Washer

37 Degree Flare Fittings

Stainless Steel 37 Degree Flare Adjustable Male O Ring And Washer Fittings Exporter

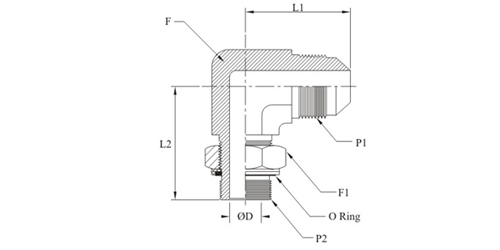

O RING & WASHER
Part No Tube OD1
mm       in 		OD
mm 		L1
mm 		L2
mm 		F
HEX 		F1
HEX		 P2
METRIC		 P1
JIC
HSAMERAW-101 6 1/4 4.8 23 27 11 14 10x1 7/16-20
HSAMERAW-102 6 1/4 4.8 24 31 14 17 12x1.5 7/16-20
HSAMERAW-103 8 5/16 4.8 24 28 14 14 10x1 1/2-20
HSAMERAW-104 8 5/16 6 24 31 14 17 12x1.5 1/2-20
HSAMERAW-105 8 5/16 6 24 33 14 19 14x1.5 1/2-20
HSAMERAW-106 10 3/8 7 27.5 33 14 19 14x1.5 9/16-18
HSAMERAW-107 10 /8 7 29.5 38 19 22 16x1.5 9/16-18
HSAMERAW-108 12 1/2 8 32 38 19 22 16x1.5 3/4-16
HSAMERAW-109 12 1/2 9.5 32 38 19 24 18x1.5 3/4-16
HSAMERAW-111 16 5/8 9.5 37 40 22 24 18x1.5 7/8-14
HSAMERAW-112 16 5/8 10 37 42 22 27 20x1.5 7/8-14
HSAMERAW-113 16 5/8 11.9 3742 42 22 27 22x1.5 7/8-14
HSAMERAW-114 18 3/4 11.5 42 46 27 27 22x1.5 1 1/16-12
HSAMERAW-115 18 3/4 15 46 50.5 27 32 27x2 1 1/16-12
HSAMERAW-116 25 1 15 46 52.5 33 32 27x2 1 5/16-12
HSAMERAW-117 25 1 19 46 52.5 33 41 33x2 1 5/16-12
HSAMERAW-118 32 1 1/4 26 53 58 41 50 42x2 1 5/8-12
HSAMERAW-119 38 1 12 32 59 63 48 55 48x2 1 7/8-12
