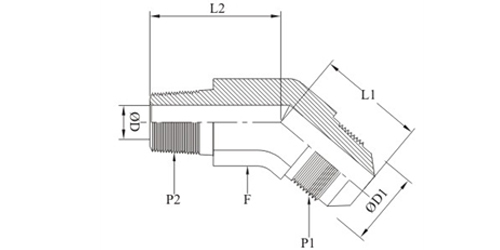

45 Degree Male Elbow BSP Taper Thread
37 Degree Flare Fittings
| BSP TAPER THREAD | ||||||||
| Part No | Tube OD1 mm in |
OD mm |
L1 mm |
L2 mm |
F HEX |
P2 BSPT |
P1 JIC |
|
| HSDMEBTT-101 | 6 | 1/4 | 4.4 | 19.5 | 16.5 | 11 | 1/8 | 7/16-20 |
| HSDMEBTT-102 | 6 | 1/4 | 4.8 | 20 | 22 | 14 | 1/4 | 7/16-20 |
| HSDMEBTT-103 | 8 | 5/16 | 4.8 | 20 | 16.5 | 14 | 1/8 | 1/2-20 |
| HSDMEBTT-104 | 8 | 5/16 | 4.8 | 20 | 22 | 14 | 1/4 | 1/2-20 |
| HSDMEBTT-105 | 10 | 3/8 | 4.4 | 21.5 | 16.5 | 14 | 1/8 | 9/16-18 |
| HSDMEBTT-106 | 10 | 3/8 | 7.1 | 21.5 | 22 | 14 | 1/4 | 9/16-18 |
| HSDMEBTT-107 | 10 | 3/8 | 7.1 | 23 | 24 | 19 | 3/8 | 9/16-18 |
| HSDMEBTT-108 | 10 | 3/8 | 7.1 | 23.5 | 29.5 | 22 | 1/2 | 9/16-18 |
| HSDMEBTT-109 | 12 | 1/2 | 7.1 | 25.5 | 24 | 19 | 1/4 | 3/4-16 |
| HSDMEBTT-110 | 12 | 1/2 | 9.5 | 25.5 | 24 | 19 | 3/8 | 3/4-16 |
| HSDMEBTT-111 | 12 | 1/2 | 10.5 | 26 | 29.5 | 22 | 1/2 | 3/4-16 |
| HSDMEBTT-112 | 12 | 1/2 | 10.5 | 27 | 30.5 | 27 | 3/4 | 3/4-16 |
| HSDMEBTT-113 | 16 | 5/8 | 9 | 29 | 25.5 | 22 | 3/8 | 7/8-14 |
| HSDMEBTT-114 | 16 | 5/8 | 11.9 | 29 | 29.5 | 22 | 1/2 | 7/8-14 |
| HSDMEBTT-115 | 16 | 5/8 | 12.5 | 30 | 30.5 | 27 | 3/4 | 7/8-14 |
| HSDMEBTT-116 | 18 | 3/4 | 11.9 | 33 | 30.5 | 27 | 1/2 | 1 1/16-12 |
| HSDMEBTT-117 | 18 | 3/4 | 15.5 | 33 | 30.5 | 27 | 3/4 | 1 1/16-12 |
| HSDMEBTT-118 | 18 | 3/4 | 17.5 | 37 | 38 | 33 | 1 | 1 1/16-12 |
| HSDMEBTT-119 | 25 | 1 | 16 | 38 | 33 | 33 | 3/4 | 1 5/16-12 |
| HSDMEBTT-120 | 25 | 1 | 21.5 | 38 | 38 | 33 | 1 | 1 5/16-12 |
| HSDMEBTT-121 | 32 | 1 1/4 | 27 | 40 | 41 | 41 | 1 | 1 5/8-12 |
| HSDMEBTT-122 | 32 | 1 1/4 | 27.5 | 40 | 42 | 41 | 1 1/4 | 1 5/8-12 |
| HSDMEBTT-123 | 38 | 1 1/2 | 33 | 46 | 45 | 48 | 1 1/2 | 1 5/8-12 |
