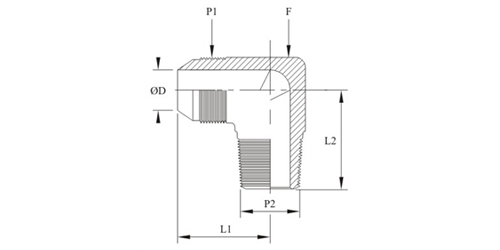

Male Elbow NPT Thread
37 Degree Flare Fittings
| NPT THREAD | ||||||||
| Part No | Tube Od1 mm in |
OD MM |
L1 MM |
L2 MM |
F HEX |
P2 NPT |
P1 JIC |
|
| HSMENT-02X02N | - | 1/8 | 1.6 | 19.6 | 18.3 | 11 | 1/8 | 5/16-24 |
| HSMENT-03X02N | - | 3/16 | 3.2 | 21.1 | 18.3 | 12.5 | 1/8 | 3/8-24 |
| HSMENT-/06M/04X02N | 6 | 1/4 | 4.4 | 22.6 | 19.3 | 12.5 | 1/8 | 7/16-20 |
| HSMENT-/06M/04X04N | 6 | 1/4 | 4.4 | 26.9 | 27.7 | 16 | 1/4 | 7/16-20 |
| HSMENT-/08M/05X02N | 8 | 5/16 | 4.8 | 24.1 | 19.8 | 16 | 1/8 | 1/2-20 |
| HSMENT-/08M/05X04N | 8 | 5/16 | 6.0 | 26.9 | 27.7 | 16 | 1/4 | 1/2-20 |
| HSMENT-/10M/06X02N | 10 | 3/8 | 4.8 | 26.9 | 22.8 | 16 | 1/8 | 9/16-18 |
| HSMENT-/10M/06X04N | 10 | 3/8 | 7.1 | 26.9 | 27.7 | 16 | 1/4 | 9/16-18 |
| HSMENT-/10M/06X06N | 10 | 3/8 | 7.5 | 29.0 | 31.0 | 20.5 | 3/8 | 9/16-18 |
| HSMENT-/10M/06X08N | 10 | 3/8 | 7.5 | 31.2 | 37.3 | 24 | 1/2 | 9/16-18 |
| HSMENT-/12M/08X04N | 12 | 1/2 | 7.1 | 31.8 | 31.0 | 24 | 1/4 | 3/4-16 |
| HSMENT-/12M/08X06N | 12 | 1/2 | 9.5 | 31.8 | 31.0 | 24 | 3/8 | 3/4-16 |
| HSMENT-/12M/08X08N | 12 | 1/2 | 9.9 | 33.7 | 37.3 | 24 | 1/2 | 3/4-16 |
| HSMENT-/12M/08X12N | 12 | 1/2 | 9.9 | 36.0 | 40.4 | 28 | 3/4 | 3/4-16 |
| HSMENT-/16M/10X06N | 16 | 5/8 | 9.5 | 36.8 | 33.0 | 24 | 3/8 | 7/8-14 |
| HSMENT-/16M/10X08N | 16 | 5/8 | 11.9 | 36.8 | 37.3 | 24 | 1/2 | 7/8-14 |
| HSMENT-/16M/10X12N | 16 | 5/8 | 12.3 | 38.9 | 40.4 | 28 | 3/4 | 7/8-14 |
| HSMENT-/18M/12X08N | 18 | 3/4 | 11.9 | 41.0 | 40.4 | 28 | 1/2 | 11/16-12 |
| HSMENT-/18M/12X12N | 18 | 3/4 | 15.5 | 41.0 | 40.4 | 28 | 3/4 | 11/16-12 |
| HSMENT-/20M/14X12N | 20 | 7/8 | 18.3 | 43.9 | 42.9 | 35 | 3/4 | 13/16-12 |
| HSMENT-/25M/16X12N | 25 | 1 | 18.3 | 46.0 | 45.2 | 35 | 3/4 | 15/16-12 |
| HSMENT-/25M/16X16N | 25 | 1 | 21.5 | 46.0 | 50.0 | 35 | 1 | 15/16-12 |
| HSMENT-/32M/20X16N | 32 | 11/4 | 21.5 | 52.3 | 59.6 | 41 | 1 | 15/8-12 |
| HSMENT-/32M/20X20N | 35 | 11/4 | 27.5 | 52.3 | 60.5 | 41 | 11/4 | 15/8-12 |
| HSMENT-/38M/24X24N | 38 | 11/2 | 33.0 | 59.2 | 67.1 | 50 | 11/2 | 17/8-12 |
| HSMENT-32X32N | - | 2 | 45.0 | 77.7 | 76.2 | 65 | 2 | 21/2-12 |
