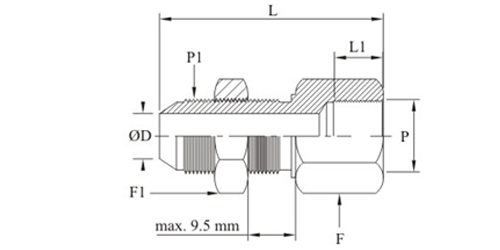

Female Bulkhead Connector NPT Thread
37 Degree Flare Fittings
| NPT THREAD | |||||||||
| Part No |
Tube OD1 mm in |
OD mm |
L1 mm |
L2 mm |
F HEX |
F1 Hex |
P BSPP |
P1 JIC |
|
| HSFBCNPT-101 | 6 | 1/4 | 4.4 | 47.5 | 16 | 17 | 17 | 1/8 | 7/16-20 |
| HSFBCNPT-102 | 6 | 1/4 | 4.5 | 52.5 | 21 | 19 | 17 | 1/4 | 7/16-20 |
| HSFBCNPT-103 | 8 | 5/16 | 6 | 47.5 | 16 | 19 | 19 | 1/8 | 1/2-20 |
| HSFBCNPT-104 | 8 | 5/16 | 6 | 52.5 | 21 | 19 | 19 | 1/4 | 1/2-20 |
| HSFBCNPT-105 | 10 | 3/8 | 7 | 49.5 | 16 | 17 | 22 | 1/8 | 9/16-18 |
| HSFBCNPT-106 | 10 | 3/8 | 7 | 54.5 | 21 | 22 | 22 | 1/4 | 9/16-18 |
| HSFBCNPT-107 | 10 | 3/8 | 7 | 56 | 22.5 | 24 | 22 | 3/8 | 9/16-18 |
| HSFBCNPT-108 | 12 | 1/2 | 7 | 59 | 21.4 | 22 | 24 | 1/4 | 3/4-16 |
| HSFBCNPT-109 | 12 | 1/2 | 8 | 60 | 22.4 | 24 | 24 | 3/8 | 3/4-16 |
| HSFBCNPT-110 | 12 | 1/2 | 8 | 64 | 26.4 | 30 | 24 | 1/2 | 3/4-16 |
| HSFBCNPT-111 | 16 | 5/8 | 9 | 67.5 | 26.4 | 30 | 30 | 1/2 | 7/8-14 |
| HSFBCNPT-112 | 20 | 3/4 | 12 | 72 | 26.6 | 30 | 36 | 1/2 | 11/16-12 |
| HSFBCNPT-113 | 20 | 3/4 | 13 | 74.5 | 29.1 | 36 | 36 | 3/4 | 11/16-12 |
| HSFBCNPT-114 | 25 | 1 | 16 | 76.5 | 31.1 | 41 | 41 | 1 | 15/16-12 |
| HSFBCNPT-115 | 32 | 11/4 | 20 | 83 | 36.3 | 50 | 50 | 11/4 | 15/8-12 |
| HSFBCNPT-116 | 38 | 11/2 | 28 | 85 | 38 | 60 | 55 | 11/2 | 17/8-12 |
