Gauge Coupling
37 Degree Flare Fittings

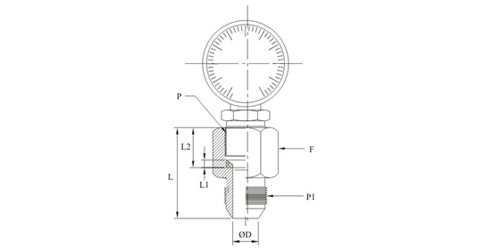

| GAUGE COUPLING | |||||||||
| Part No |
Tube OD1 mm in |
OD mm |
L1 mm |
L2 mm |
L mm |
F Hex |
P BSPP |
P1 JIC |
|
| HSGC-101 | 6 | 1/4 | 4.4 | 4.5 | 14.5 | 33 | 19 | 1/4 | 7/16-20 |
| HSGC-102 | 8 | 5/16 | 4.8 | 4.5 | 14.5 | 33 | 19 | 1/4 | 1/2-20 |
| HSGC-103 | 10 | 3/8 | 4.8 | 4.5 | 14.5 | 33 | 19 | 1/4 | 9/16-18 |
| HSGC-104 | 12 | 1/2 | 4.8 | 4.5 | 14.5 | 36 | 22 | 1/4 | 3/4-16 |
| HSGC-105 | 6 | 1/4 | 4.8 | 5 | 20 | 40 | 27 | 1/2 | 7/16-20 |
| HSGC-106 | 8 | 5/16 | 6 | 5 | 20 | 40 | 27 | 1/2 | 1/2-20 |
| HSGC-107 | 10 | 3/8 | 7.1 | 5 | 20 | 40 | 27 | 1/2 | 9/16-18 |
| HSGC-108 | 12 | 1/2 | 10 | 5 | 20 | 43 | 27 | 1/2 | 3/4-16 |
