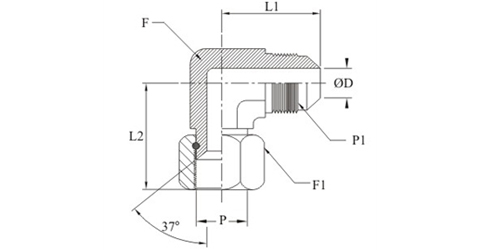

Adjustable Elbow
37 Degree Flare Fittings
| FOR IMPERIAL TUBE | |||||||||
| Part No | Tube OD1 mm in |
OD mm |
L1 mm |
L2 mm |
L3 mm |
F HEX |
F1 HEX |
P1 JIC |
|
| HSAE-101 | 6 | 1/4 | 4.4 | 19.5 | 39 | 28.3 | 11 | 17 | 7/16-20 |
| HSAE-102 | 8 | 5/16 | 6 | 20 | 41 | 28.3 | 14 | 19 | 1/2-20 |
| HSAE-103 | 10 | 3/8 | 7.5 | 21.5 | 43 | 30.1 | 14 | 22 | 9/16-18 |
| HSAE-104 | 12 | 1/2 | 9.9 | 25.5 | 49.5 | 35 | 19 | 24 | 3/4-16 |
| HSAE-105 | 16 | 5/8 | 12.3 | 29 | 55 | 38.5 | 22 | 30 | 7/8-14 |
| HSAE-106 | 18 | 3/4 | 15.5 | 33 | 62 | 42.8 | 27 | 36 | 1 1/16-12 |
| HSAE-107 | 25 | 1 | 21.5 | 38 | 65 | 42.8 | 33 | 41 | 1 5/16-12 |
| HSAE-108 | 32 | 1 1/4 | 27.5 | 40 | 67 | 44.1 | 41 | 50 | 1 5/8-12 |
| HSAE-109 | 38 | 1 1/2 | 33 | 46 | 68 | 44.3 | 48 | 55 | 1 7/8-12 |
