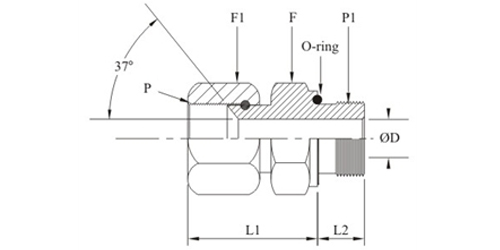

Male Connector Swivel Nut And O Ring SAE Thread
37 Degree Flare Fittings
| O RING SAE THREAD | |||||||
| Part No | P JIC |
P SAE |
Od MM |
L1 MM |
L2 MM |
F HEX |
F1 HEX |
| HSORST-04X04UO | 7/16-20 | 7/16-20 | 4.4 | 25.4 | 9.1 | 14 | 14 |
| HSORST-04X05UO | 7/16-20 | 1/2-20 | 4.8 | 25.4 | 9.1 | 17 | 17 |
| HSORST-04X06UO | 7/16-20 | 9/16-18 | 4.8 | 26.5 | 10 | 17 | 19 |
| HSORST-05X05UO | 1/2-20 | 1/2-20 | 4.8 | 26.9 | 9.1 | 17 | 17 |
| HSORST-06X06UO | 9/16-18 | 9/16-18 | 7.1 | 28.8 | 10 | 17 | 19 |
| HSORST-06X08UO | 9/16-18 | 3/4-16 | 7.1 | 29.7 | 11.1 | 22 | 19 |
| HSORST-08X08UO | 3/4-16 | 3/4-16 | 9.5 | 32 | 11.1 | 22 | 22 |
| HSORST-08X10UO | 3/4-16 | 7/8-14 | 10.5 | 33.4 | 12.7 | 27 | 22 |
| HSORST-08X12UO | 3/4-16 | 11/16-12 | 10.5 | 35 | 15.1 | 32 | 22 |
| HSORST-10X08UO | 7/8-14 | 3/4-16 | 12.5 | 36 | 11.1 | 22 | 27 |
| HSORST-10X10UO | 7/8-14 | 7/8-14 | 11.9 | 37.4 | 12.7 | 27 | 27 |
| HSORST-10X12UO | 7/8-14 | 11/16-12 | 12.5 | 39 | 15.1 | 32 | 27 |
| HSORST-12X08UO | 11/16-12 | 3/4-16 | 11.9 | 37.6 | 11.1 | 27 | 19 |
| HSORST-12X10UO | 11/16-12 | 7/8-14 | 12.5 | 37.5 | 12.7 | 27 | 22 |
| HSORST-12X12UO | 11/16-12 | 11/16-12 | 15.5 | 39.1 | 15.1 | 32 | 32 |
| HSORST-12X16UO | 11/16-12 | 15/16-12 | 17.5 | 39.6 | 15.1 | 41 | 41 |
| HSORST-16X12UO | 15/16-12 | 11/16-12 | 12.5 | 42.8 | 15.1 | 32 | 32 |
| HSORST-16X16UO | 15/16-12 | 15/16-12 | 21.5 | 43.3 | 15.1 | 41 | 41 |
| HSORST-16X20UO | 15/16-12 | 15/8-12 | 16 | 45.3 | 15.1 | 50 | 50 |
| HSORST-20X20UO | 15/8-12 | 15/8-12 | 27.5 | 45.7 | 15.1 | 50 | 50 |
| HSORST-24X24UO | 17/8-12 | 17/8-12 | 33 | 54.7 | 15.1 | 55 | 60 |
