Union Elbow
37 Degree Flare Fittings

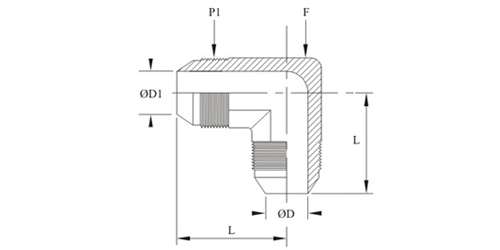

| UNION ELBOW | ||||||
| Part No | Tube OD1 mm in |
OD mm |
L mm | F HEX |
P1 JIC |
|
| HSUE-02 | - | 1/8 | 1.6 | 19.6 | 11 | 5/16-24 |
| HSUE-03 | - | 3/16 | 3.2 | 21.1 | 12.5 | 3/8-24 |
| HSUE-06M/04 | 6 | 1/4 | 4.4 | 22.6 | 12.5 | 7/16-20 |
| HSUE-08M/05 | 8 | 5/16 | 6.0 | 24.1 | 16 | 1/2-20 |
| HSUE-10M/06 | 10 | 3/8 | 7.5 | 26.9 | 16 | 9/16-18 |
| HSUE-12M/08 | 12 | 1/2 | 9.9 | 31.8 | 22 | 3/4-16 |
| HSUE-16M/10 | 16 | 5/8 | 12.3 | 36.8 | 24 | 7/8-14 |
| HSUE-18M/12 | 18 | 3/4 | 15.5 | 42.2 | 35 | 11/16-12 |
| HSUE-20M/14 | 20 | 7/8 | 18.3 | 45.7 | 35 | 13/16-12 |
| HSUE-25M/16 | 25 | 1 | 21.5 | 46.0 | 35 | 15/16-12 |
| HSUE-32M/20 | 32 | 11/4 | 27.5 | 52.3 | 41 | 15/8-12 |
| HSUE-38M/24 | 38 | 11/2 | 33.0 | 59.2 | 50 | 17/8-12 |
| HSUE-32 | - | 2 | 45.0 | 77.7 | 65 | 21/2-12 |
