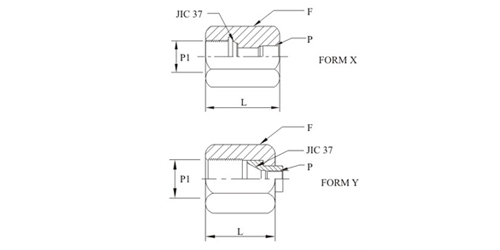

Female Gauge Coupling
37 Degree Flare Fittings
| BSP PARALLEL THREAD | ||||||||
| Part No |
Tube OD1 mm in |
OD mm |
FORMA |
L mm |
F Hex |
P BSPP |
P1 JIC |
|
| HSFGC-101 | 6 | 1/4 | 4.4 | X | 29 | 19 | 1/4 | 7/16-20 |
| HSFGC-102 | 8 | 5/16 | 4.4 | X | 29 | 19 | 1/4 | 1/2-20 |
| HSFGC-103 | 10 | 3/8 | 4.4 | X | 29 | 19 | 1/4 | 9/16-18 |
| HSFGC-104 | 12 | 1/2 | 4.4 | X | 32 | 22 | 1/4 | 3/4-16 |
| HSFGC-105 | 16 | 5/8 | 4.4 | Y | 24.6 | 27 | 1/4 | 7/8-14 |
| HSFGC-106 | 18 | 3/4 | 4.4 | Y | 25.9 | 32 | 1/4 | 11/16-12 |
| HSFGC-107 | 25 | 1 | 4.4 | Y | 28.4 | 41 | 1/4 | 15/16-12 |
| HSFGC-108 | 32 | 11/4 | 4.4 | Y | 31 | 50 | 1/4 | 15/16-12 |
