Stainless Steel 37 Degree Flare 45 Degree Adjustable Male Elbow O Ring Washer BSP Parallel Thread Fittings Exporter


O Ring Washer BSP Parallel Thread

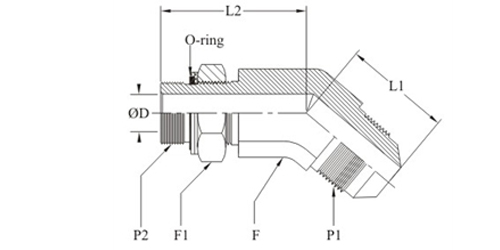

Part No Tube OD1
mm       in 		OD
mm 		L1
mm 		L2
mm 		F1
HEX 		F2
HEX 		P
BSPP		 P1
JIC
HSDAMERWBPT-101 6 1/4 4.4 19.5 26 11 14 1/8 7/16-20
HSDAMERWBPT-102 6 1/4 4.8 20 29 14 19 1/4 7/16-20
HSDAMERWBPT-103 6 1/4 4.8 22.5 33 19 22 3/8 7/16-20
HSDAMERWBPT-104 6 1/4 4.8 23 38.5 22 27 1/2 7/16-20
HSDAMERWBPT-105 8 5/16 6.5 20 24 14 14 1/8 1/2-20
HSDAMERWBPT-106 8 5/16 4.8 20 29 14 19 1/4 1/2-20
HSDAMERWBPT-107 8 5/16 7.1 22.5 33 19 22 3/8 1/2-20
HSDAMERWBPT-108 10 3/8 7.1 21.5 29 14 19 1/4 9/16-18
HSDAMERWBPT-109 10 3/8 7.1 23 33 19 22 3/8 9/16-18
HSDAMERWBPT-110 10 3/8 7.1 23.5 38.5 22 27 1/2 9/16-18
HSDAMERWBPT-111 12 1/2 6.5 25.5 32.5 19 19 1/4 3/4-16
HSDAMERWBPT-112 12 1/2 9.5 25.5 33 19 22 3/8 3/4-16
HSDAMERWBPT-113 12 1/2 10.5 26 38.5 22 27 1/2 3/4-16
HSDAMERWBPT-114 12 1/2 12.5 27 44 27 36 3/4 3/4-16
HSDAMERWBPT-115 16 5/8 7.1 39 33 22 22 3/8 7/8-14
HSDAMERWBPT-116 16 5/8 11.9 39 38.5 22 27 1/2 7/8-14
HSDAMERWBPT-117 16 5/8 12.5 30 44 27 36 3/4 7/8-14
HSDAMERWBPT-118 18 3/4 10.5 33 43 27 27 1/2 1 1/16-12
HSDAMERWBPT-119 18 3/4 15.5 33 44 27 36 3/4 1 1/16-12
HSDAMERWBPT-120 18 3/4 17.5 37 47 33 41 1 1 1/16-12
HSDAMERWBPT-121 25 1 16 38 45 33 36 3/4 1 5/16-12
HSDAMERWBPT-122 25 1 21.5 38 47 33 41 1 1 5/16-12
HSDAMERWBPT-123 25 1 22 39 48 41 50 1 1/4 1 5/16-12
HSDAMERWBPT-124 32 1 1/4 27 40 48 41 41 1 1 5/8-12
HSDAMERWBPT-125 32 1 1/4 27.5 40 48 41 50 1 1/4 1 5/8-12
HSDAMERWBPT-126 38 1 1/2 30 46 48 48 50 1 1/4 1 7/8-12
HSDAMERWBPT-127 38 1 1/2 33 46 48 48 55 1 1/2 1 7/8-12
