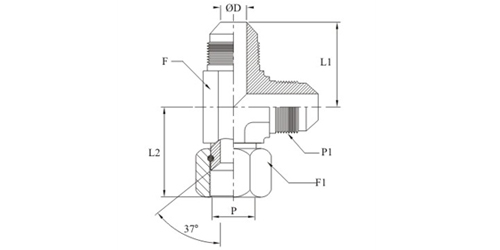

Adjustable Run Tee
37 Degree Flare Fittings
| SWIVEL NUT -UNF THREAD | ||||||||
| Part No | Tube OD1 mm in |
P/P1 JIC |
OD mm |
L1 mm |
L2 mm |
F HEX |
F1 HEX |
|
| HSART-101 | 6 | 1/4 | 7/16-20 | 4.4 | 23 | 26.5 | 11 | 14 |
| HSART-102 | 8 | 5/16 | 1/2-20 | 6 | 24 | 27 | 14 | 17 |
| HSART-103 | 10 | 3/8 | 9/16-18 | 7.5 | 27.5 | 31.3 | 14 | 19 |
| HSART-104 | 12 | 1/2 | 3/4-16 | 10 | 32 | 35.6 | 19 | 22 |
| HSART-105 | 16 | 5/8 | 7/8-14 | 12.5 | 37 | 41.6 | 22 | 27 |
| HSART-106 | 18 | 3/4 | 1 1/16-12 | 15.5 | 42 | 44.2 | 27 | 32 |
| HSART-107 | 25 | 1 | 1 5/16-12 | 21.5 | 46 | 51.4 | 33 | 41 |
| HSART-108 | 32 | 11/4 | 1 5/8-12 | 27.5 | 53 | 58.8 | 41 | 50 |
