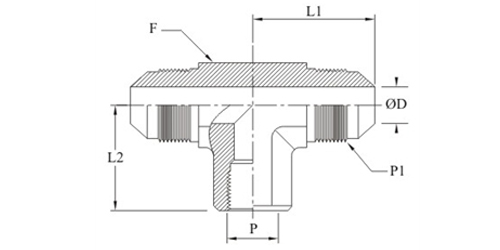

Female Branch Tee BSP Parallel
37 Degree Flare Fittings
| BSP PARALLEL | ||||||||
| Part No |
Tube OD1 in mm |
Od mm |
L1 mm |
L2 mm |
F Hex |
P BSPP |
P1 JIC |
|
| HSBSP-101 | 6 | 1/4 | 4.4 | 27.5 | 17 | 14 | 1/8 | 7/16-20 |
| HSBSP-102 | 6 | 1/4 | 4.4 | 29 | 22.5 | 19 | 1/4 | 7/16-20 |
| HSBSP-103 | 8 | 5/16 | 6 | 27.5 | 17 | 14 | 1/8 | 1/2-20 |
| HSBSP-104 | 8 | 5/16 | 6 | 29 | 22.5 | 19 | 1/4 | 1/2-20 |
| HSBSP-105 | 10 | 3/8 | 7 | 27.5 | 17 | 14 | 1/8 | 9/16-18 |
| HSBSP-106 | 10 | 3/8 | 7 | 31 | 22.5 | 19 | 1/4 | 9/16-18 |
| HSBSP-107 | 10 | 3/8 | 7 | 31.5 | 26 | 22 | 3/8 | 9/16-18 |
| HSBSP-108 | 12 | 1/2 | 7 | 32 | 22.5 | 19 | 1/4 | 3/4-16 |
| HSBSP-109 | 12 | 1/2 | 8 | 36 | 26 | 22 | 3/8 | 3/4-16 |
| HSBSP-110 | 12 | 1/2 | 9 | 36 | 31 | 27 | 1/2 | 3/4-16 |
| HSBSP-111 | 16 | 5/8 | 9 | 42 | 31 | 27 | 1/2 | 7/8-14 |
| HSBSP-112 | 18 | 3/4 | 12 | 42 | 31 | 27 | 1/2 | 11/16-12 |
| HSBSP-113 | 18 | 3/4 | 13 | 48 | 34.5 | 33 | 3/4 | 11/16-12 |
| HSBSP-114 | 25 | 1 | 16 | 55 | 41 | 41 | 1 | 15/16-12 |
| HSBSP-115 | 32 | 11/4 | 20 | 55 | 41 | 41 | 1 | 15/8-12 |
| HSBSP-116 | 32 | 11/4 | 25 | 59 | 43 | 48 | 11/4 | 15/5-12 |
| HSBSP-117 | 38 | 11/2 | 27 | 59 | 43 | 48 | 11/4 | 17/8-12 |
| HSBSP-118 | 38 | 11/2 | 28 | 73 | 53 | 65 | 11/2 | 17/8-12 |
