Female Connector
37 Degree Flare Fittings

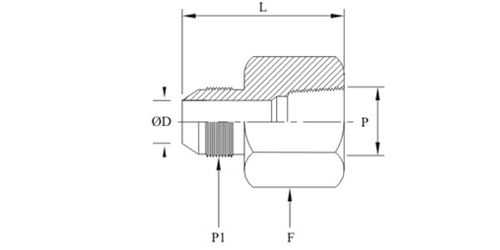

| NPT THREAD | |||||||
| Part No |
Tube OD1 mm in |
OD mm |
L mm |
F Hex |
P NPT |
P1 JIC |
|
| HSFC-101 | - | 1/8 | 1.6 | 25.4 | 14 | 1/8 | 5/16-24 |
| HSFC-102 | - | 3/16 | 3.2 | 26.2 | 14 | 1/8 | 3/8-24 |
| HSFC-103 | 6 | 1/4 | 4.4 | 27.4 | 14 | 1/8 | 7/16-20 |
| HSFC-104 | 6 | 1/4 | 4.4 | 30.9 | 19 | 1/4 | 7/16-20 |
| HSFC-105 | 8 | 5/16 | 6.0 | 27.4 | 14 | 1/8 | 1/2-20 |
| HSFC-106 | 8 | 5/16 | 6.0 | 30.9 | 19 | 1/4 | 1/2-20 |
| HSFC-107 | 10 | 3/8 | 7.5 | 26.9 | 19 | 1/4 | 9/16-18 |
| HSFC-108 | 10 | 3/8 | 7.5 | 31.2 | 22 | 3/8 | 9/16-18 |
| HSFC-109 | 12 | 1/2 | 9.9 | 33.2 | 22 | 3/8 | 3/4-16 |
| HSFC-110 | 12 | 1/2 | 9.9 | 31.6 | 28 | 1/2 | 3/4-16 |
| HSFC-111 | 16 | 5/8 | 12.3 | 36.1 | 28 | 1/2 | 7/8-14 |
| HSFC-112 | 18 | 3/4 | 15.5 | 36.1 | 28 | 1/2 | 11/16-12 |
| HSFC-113 | 18 | 3/4 | 15.5 | 41.5 | 35 | 3/4 | 11/16-12 |
| HSFC-114 | 20 | 7/8 | 18.3 | 42.1 | 35 | 3/4 | 13/16-12 |
| HSFC-115 | 25 | 1 | 21.5 | 48.0 | 41 | 1 | 15/16-12 |
| HSFC-116 | 32 | 11/4 | 27.5 | 47.2 | 50 | 11/4 | 15/8-12 |
| HSFC-117 | 38 | 11/2 | 33.0 | 55.1 | 60 | 11/2 | 17/8-12 |
| HSFC-118 | - | 2 | 45.0 | 59.2 | 73 | 2 | 21/2-12 |
