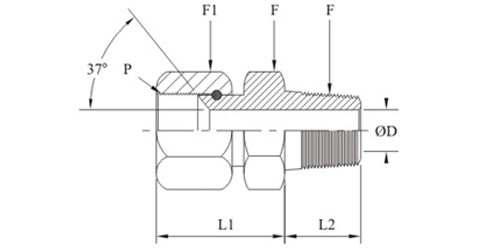

Male Connector Swivel Nut NPT Thread
37 Degree Flare Fittings
| NPT THREAD | |||||||
| Part No | P JIC |
P NPT |
Od MM |
L1 MM |
L2 MM |
F HEX |
F1 HEX |
| HSNNT-04X02N | 7/16-20 | 1/8 | 4.4 | 24.5 | 10 | 12 | 14 |
| HSNNT-04X04N | 7/16-20 | 1/4 | 4.8 | 24.5 | 14.5 | 14 | 14 |
| HSNNT-05X02N | 1/2-20 | 1/8 | 4.8 | 26 | 10 | 12 | 17 |
| HSNNT-05X04N | 1/2-20 | 1/4 | 4.8 | 26 | 14.5 | 14 | 17 |
| HSNNT-06X02N | 9/16-18 | 1/8 | 4.4 | 26.8 | 10 | 14 | 19 |
| HSNNT-06X04N | 9/16-18 | 1/4 | 7.1 | 26.8 | 14.5 | 14 | 19 |
| HSNNT-06X06N | 9/16-18 | 3/8 | 7.1 | 27.8 | 14.5 | 17 | 19 |
| HSNNT-06X08N | 9/16-8 | 1/2 | 7.1 | 27.8 | 19 | 22 | 19 |
| HSNNT-08X04N | 3/4-16 | 1/4 | 7.1 | 30.1 | 14.5 | 19 | 22 |
| HSNNT-08X06N | 3/4-16 | 3/8 | 9.9 | 30.1 | 14.5 | 19 | 22 |
| HSNNT-08X08N | 3/4-16 | 1/2 | 9.9 | 30.1 | 19 | 22 | 22 |
| HSNNT-08X12N | 3/4-16 | 3/4 | 12.5 | 33.1 | 19 | 27 | 22 |
| HSNNT-10X06N | 7/8-14 | 3/8 | 7.1 | 34.1 | 14.5 | 22 | 27 |
| HSNNT-10X08N | 7/8-14 | 1/2 | 11.9 | 34.1 | 19 | 22 | 27 |
| HSNNT-10X12N | 7/8-14 | 3/4 | 12.5 | 37.1 | 19 | 27 | 27 |
| HSNNT-12X08N | 11/16-12 | 1/2 | 11.9 | 37.2 | 19 | 27 | 32 |
| HSNNT-12X12N | 11/16-12 | 3/4 | 15.5 | 37.2 | 19 | 27 | 32 |
| HSNNT-16X12N | 15/16-12 | 3/4 | 18 | 40.9 | 19 | 32 | 41 |
| HSNNT-16X16N | 15/16-12 | 1 | 21.5 | 41.4 | 24 | 36 | 41 |
| HSNNT-20X16N | 15/8-12 | 1 | 22 | 42.3 | 24 | 41 | 50 |
| HSNNT-20X20N | 15/8-12 | 11/4 | 27.5 | 42.8 | 25 | 46 | 50 |
| HSNNT-24X24N | 17/8-12 | 11/2 | 33 | 51.8 | 26 | 50 | 60 |
