Adjustable Branch Tee

37 Degree Flare Fittings

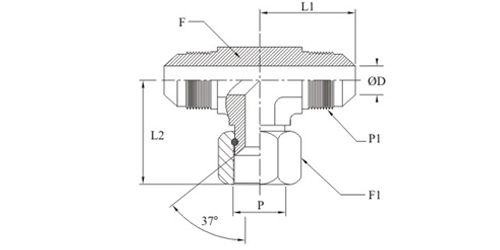

Stainless Steel 37 Degree Flare Adjustable Branch Tee Fittings Exporter


FOR IMPERIAL TUBE
Part No Tube OD1
mm       in 		P/P1
JIC		 OD
mm 		L1
mm 		L2
mm		 F
HEX		 F1
HEX
HSABT-101 6 1/4 7/16-20 4.4 23 26.5 11 14
HSABT-102 8 5/16 1/2-20 6 24 27 14 17
HSABT-103 10 3/8 9/16-18 7.5 27.5 31.3 14 19
HSABT-104 12 1/2 3/4-16 10 32 35.6 19 22
HSABT-105 16 5/8 7/8-14 12.5 37 41.6 22 27
HSABT-106 18 3/4 1 1/16-12 15.5 42 44.2 27 32
HSABT-107 25 1 1 5/16-12 21.5 46 51.4 33 41
HSABT-108 32 1 1/4 1 5/8-12 27.5 53 58.8 41 50
HSABT-109 38 1 1/2 1 7/8-12 33 59 66.3 48 60
