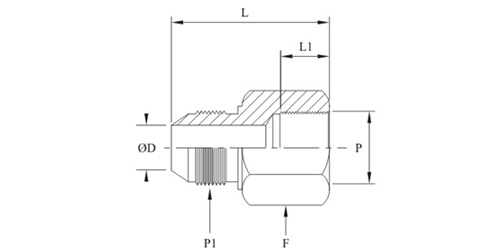

Female Connector BSP Parallel Thread
37 Degree Flare Fittings
| BSP PARALLEL | ||||||||
| Part No |
Tube OD1 mm in |
OD mm |
L mm |
L1 mm |
F Hex |
P BSPP |
P1 JIC |
|
| HSBSPP-101 | 6 | 1/4 | 4.5 | 30 | 10 | 14 | 1/8 | 7/16-20 |
| HSBSPP-102 | 6 | 1/4 | 4.5 | 35 | 14 | 19 | 1/4 | 7/16-20 |
| HSBSPP-103 | 8 | 5/16 | 6 | 30 | 10 | 14 | 1/8 | 1/2-20 |
| HSBSPP-104 | 8 | 5/16 | 6 | 35 | 14 | 19 | 1/4 | 1/2-20 |
| HSBSPP-105 | 10 | 3/8 | 7 | 35 | 14 | 19 | 1/4 | 9/16-18 |
| HSBSPP-106 | 10 | 3/8 | 7 | 36 | 14 | 22 | 3/8 | 9/16-18 |
| HSBSPP-107 | 10 | 3/8 | 7 | 40.5 | 17 | 30 | 1/2 | 9/16-18 |
| HSBSPP-108 | 12 | 1/2 | 7 | 39 | 14 | 22 | 1/4 | 3/4-16 |
| HSBSPP-109 | 12 | 1/2 | 8 | 39 | 14 | 22 | 3/8 | 3/4-16 |
| HSBSPP-110 | 12 | 1/2 | 8 | 43 | 17 | 30 | 1/2 | 3/4-16 |
| HSBSPP-111 | 16 | 5/8 | 9 | 45.5 | 17 | 30 | 1/2 | 7/8-14 |
| HSBSPP-112 | 18 | 3/4 | 12 | 48 | 17 | 30 | 1/2 | 11/16-12 |
| HSBSPP-113 | 18 | 3/4 | 13 | 51 | 19 | 36 | 3/4 | 11/16-12 |
| HSBSPP-114 | 25 | 1 | 16 | 54 | 21.5 | 41 | 1 | 15/16-12 |
| HSBSPP-115 | 32 | 11/4 | 20 | 55.5 | 21.5 | 46 | 1 | 15/8-12 |
| HSBSPP-116 | 32 | 11/4 | 25 | 60.5 | 23.5 | 50 | 11/4 | 15/8-12 |
| HSBSPP-117 | 38 | 11/2 | 27 | 64 | 23.5 | 50 | 11/4 | 17/8-12 |
| HSBSPP-117 | 38 | 11/2 | 28 | 65.5 | 23.5 | 60 | 11/2 | 17/8-12 |
