Male-Male Adaptor Medium Pressure to Reverse High Pressure
Adaptors - High Pressure Systems

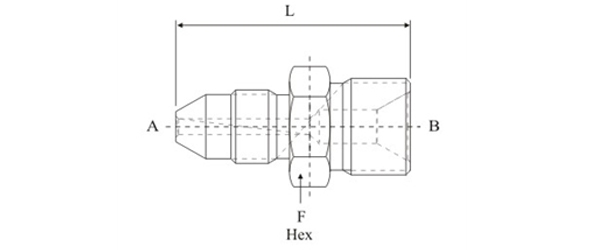

| MALE-MALE ADAPTER MEDIUM PRESSURE TO REVERSE HIGH PRESSURE
|
|||||
| Part No | A High pressure | B Reverse High |
F
HEX Inch mm |
L mm | |
| HSM-MAMPRHP-101 | XM4 | RH9 | 5/8 | 15.9 | 39.7 |
| HSM-MAMPRHP-102 | XM4 | RH12 | 13/16 | 20.6 | 47.6 |
| HSM-MAMPRHP-103 | XM4 | RH16 | 1 | 25.4 | 54 |
| HSM-MAMPRHP-104 | XM6 | RH9 | 5/8 | 15.9 | 42.8 |
| HSM-MAMPRHP-105 | XM6 | RH12 | 13/16 | 20.6 | 46.2 |
| HSM-MAMPRHP-106 | XM6 | RH16 | 1 | 25.4 | 57.1 |
| HSM-MAMPRHP-107 | XM9 | RH9 | 15/16 | 23.8 | 50.8 |
| HSM-MAMPRHP-108 | XM9 | RH12 | 15/16 | 23.8 | 54 |
| HSM-MAMPRHP-109 | XM9 | RH14 | 15/16 | 23.8 | 61.9 |
| HSM-MAMPRHP-110 | XM9 | RH16 | 1 | 25.4 | 57.1 |
| HSM-MAMPRHP-111 | XM9 | RH21 | 1-3/8 | 34.9 | 60.3 |
| HSM-MAMPRHP-112 | XM12 | RH9 | 1-3/16 | 30.0 | 60.3 |
| HSM-MAMPRHP-113 | XM12 | RH12 | 1-3/16 | 30.0 | 61.9 |
| HSM-MAMPRHP-114 | XM12 | RH16 | 1-3/16 | 30.0 | 63.5 |
| HSM-MAMPRHP-115 | XM12 | RH21 | 1-1/2 | 38.0 | 69.9 |
| HSM-MAMPRHP-116 | XM16 | RH9 | 1-3/8 | 34.9 | 79.3 |
| HSM-MAMPRHP-117 | XM16 | RH12 | 1-3/8 | 34.9 | 80.9 |
| HSM-MAMPRHP-118 | XM16 | RH14 | 1-3/8 | 34.9 | 84.9 |
| HSM-MAMPRHP-119 | XM16 | RH16 | 1-3/8 | 34.9 | 85.7 |
| HSM-MAMPRHP-120 | XM16 | RH21 | 1-1/2 | 38.0 | 82.6 |
