Coupling High Pressure
Adaptors - High Pressure Systems

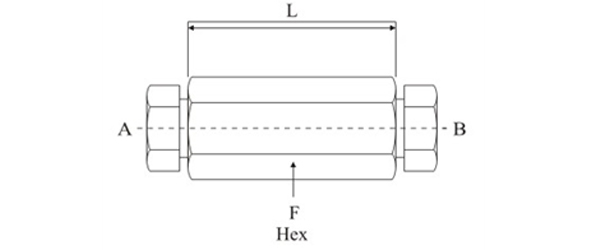

| HIGH PRESSURE | |||||
| Catalouge # | A FEMALE END |
B FEMALE END |
F-HEX Inch mm | L mm | |
| HSCHP/60-ZF4-ZF4 | ZF4 | ZF4 | 3/4 | 19.0 | 35.1 |
| HSCHP/60-ZF4-ZF6 | ZF4 | ZF6 | 1 | 25.4 | 41.4 |
| HSCHP/60-Z4-Z9 | ZF4 | ZF9 | 1-3/8 | 35.0 | 44.5 |
| HSCHP/60-Z4-Z5 | ZF4 | ZF5 | 1 | 25.4 | 50.8 |
| HSCHP/60-ZF4-ZF16 | ZF4 | ZF16 | 1-3/4 | 44.5 | 69.9 |
| HSCHP/60-ZF6-ZF6 | ZF6 | ZF6 | 1 | 25.4 | 44.5 |
| HSCHP/60-ZF6-ZF9 | ZF6 | ZF9 | 1-3/8 | 35.0 | 50.8 |
| HSCHP/60-ZF6-ZF5 | ZF6 | ZF5 | 1 | 25.4 | 57.2 |
| HSCHP/40-ZF6-ZF16 | ZF6 | ZF16 | 1-3/4 | 44.5 | 73.0 |
| HSCHP/60-ZF9-ZF9 | ZF9 | ZF9 | 1-3/8 | 35.0 | 55.6 |
| HSCHP/60-ZF9-ZF9 | ZF9 | ZF9 | 1-3/8 | 35.0 | 55.6 |
| HSCHP/60-ZF9-ZF5 | ZF9 | ZF5 | 1-3/16 | 30.0 | 66.7 |
| HSCHP/40-ZF9-XF16 | ZF9 | ZF16 | 1-3/4 | 44.5 | 82.6 |
| HSCHP/150-ZF5-ZF5 | ZF5 | ZF5 | 1-3/8 | 35.0 | 63.5 |
| HSCHP/40-ZF16-ZF16 | ZF16 | ZF16 | 1-3/4 | 44.5 | 88.9 |
