Male-Male Adaptor Medium Pressure to Medium Pressure
Adaptors - High Pressure Systems

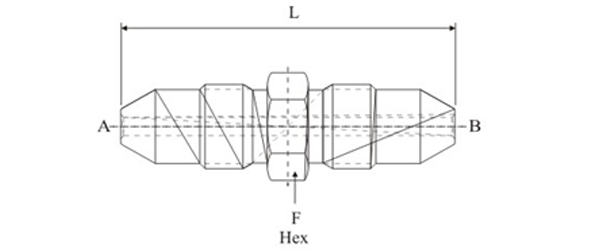

| MALE-MALE ADAPTER MEDIUM PRESSURE TO MEDIUM PRESSURE | |||||
| Part No | A Medium pressure | B Mediumpressure |
F
HEX Inch mm |
L mm | |
| HSM-MAPMP-101 | XM4 | XM4 | 1/2 | 12.7 | 42.9 |
| HSM-MAPMP-102 | XM4 | XM6 | 5/8 | 15.9 | 47.6 |
| HSM-MAPMP-103 | XM4 | XM9 | 15/16 | 23.8 | 60.3 |
| HSM-MAPMP-104 | XM4 | XM12 | 1-3/16 | 30.1 | 68.2 |
| HSM-MAPMP-105 | XM4 | XM16 | 1-3/8 | 34.9 | 85.7 |
| HSM-MAPMP-106 | XM6 | XM6 | 5/8 | 15.9 | 57.1 |
| HSM-MAPMP-107 | XM6 | XM9 | 15/16 | 23.8 | 60.3 |
| HSM-MAPMP-108 | XM6 | XM12 | 1-3/16 | 30.1 | 71.4 |
| HSM-MAPMP-109 | XM6 | XM16 | 1-3/8 | 34.9 | 85.7 |
| HSM-MAPMP-110 | XM9 | XM9 | 15/16 | 23.8 | 63.5 |
| HSM-MAPMP-111 | XM9 | XM12 | 1-3/16 | 30.1 | 76.2 |
| HSM-MAPMP-112 | XM9 | XM16 | 1-3/8 | 34.9 | 68.2 |
| HSM-MAPMP-113 | XM12 | XM12 | 1-3/16 | 30.1 | 79.3 |
| HSM-MAPMP-114 | XM12 | XM16 | 1-3/8 | 34.9 | 96.8 |
| HSM-MAPMP-115 | XM16 | XM4 | 1-3/8 | 34.9 | 82.6 |
| HSM-MAPMP-116 | XM16 | XM16 | 1-3/8 | 34.9 | 111.1 |
