Male-Female Adaptor Flat Bottom
Adaptors - High Pressure Systems

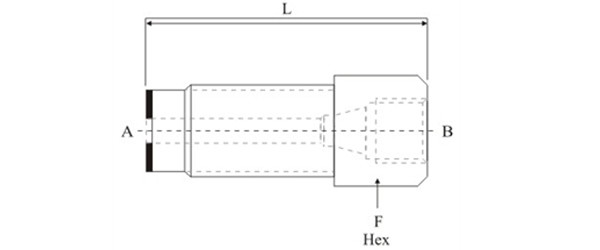

| MALE-FEMALE ADAPTOR FLAT BOTTOM | |||||
| Catalouge # | A FEMALE END |
B FEMALE END |
F-HEX Inch mm | B mm | |
| HSM-FAFB-101 | BM7 | XF4 | 5/8 | 15.9 | 38.9 |
| HSM-FAFB-102 | BM7 | XF6 | 3/4 | 19.0 | 45.2 |
| HSM-FAFB-103 | BM7 | Xf9 | 1 | 25.4 | 48.4 |
| HSM-FAFB-104 | BM7 | ZF4 | 3/4 | 19.0 | 38.9 |
| HSM-FAFB-105 | BM7 | ZF6 | 1 | 25.4 | 45.2 |
| HSM-FAFB-106 | BM7 | ZF9 | 1-3/8 | 35.0 | 51.6 |
| HSM-FAFB-107 | BM7 | NF2 | 5/8 | 15.9 | 40.4 |
| HSM-FAFB-108 | BM7 | NF4 | 3/4 | 19.0 | 45.2 |
| HSM-FAFB-109 | BM7 | NF6 | 1 | 25.4 | 48.4 |
| HSM-FAFB-110 | BM7 | NF8 | 1-3/16 | 30.0 | 54.8 |
| HSM-FAFB-110 | BM9 | XF4 | 5/8 | 15.9 | 46 |
| HSM-FAFB-111 | BM9 | XF6 | 3/4 | 19.0 | 52.4 |
| HSM-FAFB-112 | BM9 | XF9 | 1 | 25.4 | 30.1 |
| HSM-FAFB-113 | BM9 | XF12 | 1-3/8 | 35.0 | 71.4 |
| HSM-FAFB-114 | BM9 | ZF4 | 13/16 | 20.6 | 49.2 |
| HSM-FAFB-115 | BM9 | ZF6 | 1 | 25.4 | 61.9 |
| HSM-FAFB-116 | BM9 | NF2 | 5/8 | 15.9 | 49.2 |
| HSM-FAFB-117 | BM9 | NF4 | 3/4 | 19.0 | 55.5 |
| HSM-FAFB-118 | BM9 | NF6 | 1 | 25.4 | 58.7 |
| HSM-FAFB-119 | BM9 | NF8 | 1-3/16 | 30.0 | 41.3 |
| HSM-FAFB-119 | BM9 | NF12 | 1-3/8 | 35.0 | 52.34 |
| HSM-FAFB-120 | BM9 | NF16 | 1-7/8 | 47.6 | 57.2 |
| HSM-FAFB-121 | BM12 | XF4 | 13/16 | 20.6 | 49.2 |
| HSM-FAFB-122 | BM12 | XF6 | 13/16 | 20.6 | 52.4 |
| HSM-FAFB-123 | BM12 | XF9 | 1 | 25.4 | 33.3 |
| HSM-FAFB-124 | BM12 | XF12 | 1-3/8 | 35.0 | 42.8 |
| HSM-FAFB-125 | BM12 | XF16 | 1-3/4 | 44.5 | 84.1 |
| HSM-FAFB-126 | BM12 | ZF4 | 1 | 25.4 | 49.2 |
| HSM-FAFB-132 | BM12 | ZF6 | 1 | 25.4 | 55.5 |
| HSM-FAFB-127 | BM12 | ZF9 | 1-3/8 | 35.0 | 58.7 |
| HSM-FAFB-128 | BM12 | NF2 | 15/16 | 23.8 | 46.2 |
| HSM-FAFB-129 | BM12 | NF4 | 1 | 25.4 | 58.7 |
| HSM-FAFB-130 | BM12 | NF6 | 1 | 25.4 | 55.5 |
| HSM-FAFB-131 | BM12 | NF8 | 1-3/16 | 30.0 | 68.3 |
| HSM-FAFB-132 | BM12 | NF12 | 1-3/8 | 35.0 | 68.3 |
| HSM-FAFB-132 | B12 | NF16 | 1-7/8 | 47.6 | 81.0 |
