Male-Male Adaptor High Pressure to NPT
Adaptors - High Pressure Systems

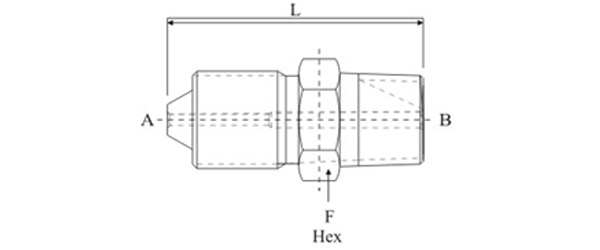

| MALE-MALE ADAPTER HIGH PRESSURE TO NPT | |||||
| Part No | A High pressure | B NPT | F
HEX Inch mm |
B mm | |
| HSM-MAHPNPT-101 | ZF4 | NM4 | 5/8 | 15.9 | 46.2 |
| HSM-MAHPNPT-102 | ZF4 | NM6 | 3/4 | 19.0 | 47.6 |
| HSM-MAHPNPT-103 | ZF4 | NM8 | 15/16 | 23.8 | 57.1 |
| HSM-MAHPNPT-104 | ZF6 | NM4 | 13/16 | 20.6 | 54.0 |
| HSM-MAHPNPT-105 | ZF6 | NM6 | 13/16 | 20.6 | 54.0 |
| HSM-MAHPNPT-106 | ZF6 | NM8 | 15/16 | 23.8 | 63.5 |
| HSM-MAHPNPT-107 | ZF9 | NM4 | 1-3/16 | 30.0 | 66.7 |
| HSM-MAHPNPT-108 | ZF9 | NM6 | 1-3/16 | 30.0 | 65.0 |
| HSM-MAHPNPT-109 | ZF9 | NM8 | 1-3/16 | 30.0 | 69.9 |
