Male-Female Adaptor JIC to Medium Pressure Adaptors
Adaptors - High Pressure Systems

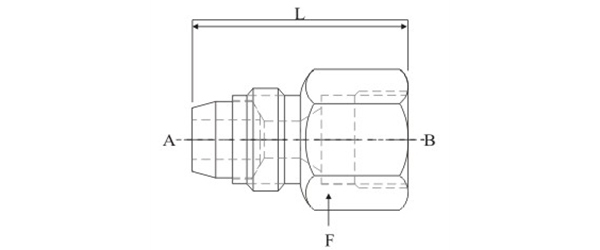

| JIC TO MEDIUM PRESSURE ADAPTERS
|
|||||
| Catalouge # | A FEMALE END |
B FEMALE END |
F-HEX Inch mm | B mm | |
| HSM-FAJMPA/20-JM4-XF4 | JM4 | XF4 | 5/8 | 15.9 | 31.8 |
| HSM-FAJMPA/20-JM4-XM6 | JM4 | XF6 | 3/4 | 19.0 | 38.1 |
| HSM-FAJMPA/20-JM4-XF9 | JM4 | XF9 | 1 | 25.4 | 47.8 |
| HSM-FAJMPA./20-JM4-XF12 | JM4 | XF12 | 1-3/8 | 35.0 | 54.0 |
| HSM-FAJMPA/20-JM4-XF16 | JM4 | XF16 | 1-3/4 | 44.5 | 69.9 |
| HSM-FAJMPA/20-JM6-XF4 | JM6 | XF4 | 5/8 | 15.9 | 31.8 |
| HSM-FAJMPA/20-JM6-XF6 | JM6 | XF6 | 3/4 | 19.0 | 36.5 |
| HSM-FAJMPA/20-JM6-XF9 | JM6 | XF9 | 1 | 25.4 | 47.8 |
| HSM-FAJMPA/20-JM6-XF12 | JM6 | XF12 | 1-3/8 | 35.0 | 54.0 |
| HSM-FAJMPA/20-JM6-XF16 | JM6 | XF16 | 1-3/4 | 44.5 | 66.5 |
| HSM-FAJMPA/20-JM8-XF4 | JM8 | XF4 | 13/16 | 20.6 | 41.3 |
| HSM-FAJMPA/20-JM8-XF6 | JM8 | XF6 | 13/16 | 20.6 | 44.5 |
| HSM-FAJMPA/20-JM8-XF9 | JM8 | XF9 | 1 | 25.4 | 47.8 |
| HSM-FAJMPA/20-JM8-XF12 | JM8 | XF12 | 1-3/8 | 35.0 | 57.2 |
| HSM-FAJMPA/20-JM8-XF16 | JM8 | XF16 | 1-3/4 | 44.5 | 69.9 |
| HSM-FAJMPA/15-JM12-XF4 | JM12 | XF4 | 1-3/8 | 35.0 | 50.8 |
| HSM-FAJMPA/15-JM12-XF6 | JM12 | XF6 | 1-3/8 | 35.0 | 50.8 |
| HSM-FAJMPA/15-JM12-XF9 | JM12 | XF9 | 1-3/8 | 35.0 | 50.8 |
| HSM-FAJMPA/15-JM12-XF12 | JM12 | XF12 | 1-3/8 | 35.0 | 57.2 |
| HSM-FAJMPA/15-JM12-XF16 | JM12 | XF16 | 1-3/4 | 44.5 | 82.6 |
| HSM-FAJMPA/15-JM16-XF4 | JM16 | XF4 | 1-1/2 | 38.0 | 50.8 |
| HSM-FAJMPA/15-JM16-XF6 | JM16 | XF6 | 1-1/2 | 38.0 | 50.8 |
| HSM-FAJMPA/15-JM16-XF9 | JM16 | XF9 | 1-1/2 | 38.0 | 57.2 |
| HSM-FAJMPA/15-JM16-XF12 | JM16 | XF12 | 1-1/2 | 38.0 | 66.5 |
| HSM-FAJMPA/15-JM16-XF16 | JM16 | XF16 | 1-3/4 | 44.5 | 82.6 |
