Male-Male JIC Adaptor Medium Pressure to JIC
Adaptors - High Pressure Systems

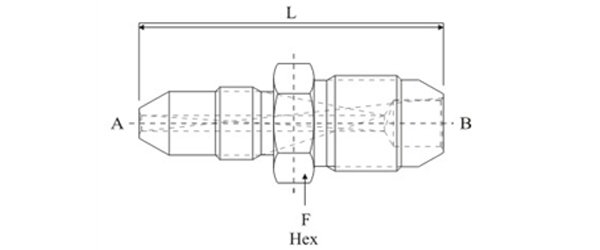

| MALE-MALE ADAPTER NPT TO NPT | |||||
| Part No | A NPT | B NPT |
F
HEX Inch mm |
B mm | |
| HSM-MANN-101 | NM4 | NM4 | 5/8 | 15.9 | 46.2 |
| HSM-MANN-102 | NM4 | NM6 | 3/4 | 19.0 | 47.6 |
| HSM-MANN-103 | NM4 | NM8 | 15/16 | 23.8 | 58.7 |
| HSM-MANN-104 | NM6 | NM6 | 3/4 | 19.0 | 47.6 |
| HSM-MANN-105 | NM6 | NM8 | 15/16 | 23.8 | 58.7 |
| HSM-MANN-106 | NM8 | NM8 | 15/16 | 23.8 | 63.5 |
