Male-Male Adaptor Medium Pressure to NPT
Adaptors - High Pressure Systems

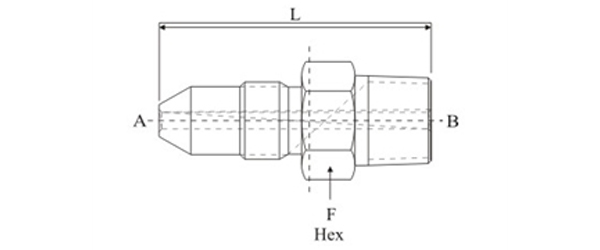

| MALE-MALE ADAPTER MEDIUM PRESSURE TO NPT
|
|||||
| Part No | A High pressure | B NPT |
F
HEX Inch mm |
L mm | |
| HSM-MAMPNPT-101 | XM4 | NM4 | 5/8 | 15.9 | 44.5 |
| HSM-MAMPNPT-102 | XM4 | NM6 | 3/4 | 19.0 | 46.2 |
| HSM-MAMPNPT-103 | XM4 | NM8 | 15/16 | 23.8 | 55.5 |
| HSM-MAMPNPT-104 | XM6 | NM4 | 5/8 | 15.9 | 49.1 |
| HSM-MAMPNPT-105 | XM6 | NM6 | 3/4 | 19.0 | 50.8 |
| HSM-MAHPNPT-106 | XM6 | NM8 | 15/16 | 23.8 | 60.3 |
| HSM-MAHPNPT-107 | XM9 | NM4 | 13/16 | 20.6 | 57.1 |
| HSM-MAHPNPT-108 | XM9 | NM6 | 13/16 | 20.6 | 54 |
| HSM-MAHPNPT-109 | XM9 | NM8 | 15/16 | 23.8 | 65 |
| HSM-MAHPNPT-110 | XM9 | NM12 | 1-3/16 | 30.0 | 69.9 |
| HSM-MAHPNPT-111 | XM9 | NM16 | 1-3/8 | 34.9 | 76.2 |
| HSM-MAHPNPT-112 | XM12 | NM4 | 1-3/16 | 30.0 | 66.7 |
| HSM-MAHPNPT-113 | XM12 | NM6 | 1-3/16 | 30.0 | 66.7 |
| HSM-MAHPNPT-114 | XM12 | NM8 | 1-3/16 | 30.0 | 71.4 |
| HSM-MAHPNPT-115 | XM12 | NM12 | 1-3/16 | 30.0 | 71.4 |
| HSM-MAHPNPT-116 | XM12 | NM16 | 1-1/2 | 38.0 | 71.4 |
| HSM-MAHPNPT-117 | XM16 | NM4 | 1-3/8 | 34.9 | 85.7 |
| HSM-MAHPNPT-118 | XM16 | NM6 | 1-3/8 | 34.9 | 84.1 |
| HSM-MAHPNPT-119 | XM16 | NM8 | 1-3/8 | 34.9 | 87.3 |
| HSM-MAHPNPT-120 | XM16 | NM12 | 1-3/8 | 34.9 | 95.3 |
| HSM-MAHPNPT-121 | XM16 | NM16 | 1-1/2 | 38.0 | 101.6 |
