Male-Male JIC Adaptor NPT to JIC
Adaptors - High Pressure Systems

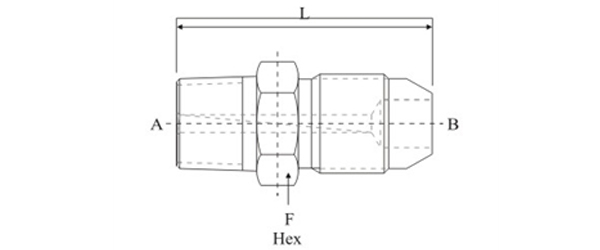

| NPT TO JIC Adapters | |||||
| Part No | A NYP | B JIC |
F
HEX Inch mm |
L mm | |
| HSM-MJAN-J-101 | NM4 | JM4 | 3/4 | 19.1 | 42.8 |
| HSM-MJAN-J-102 | NM4 | JM6 | 13/16 | 20.6 | 44.5 |
| HSM-MJAN-J-103 | NM4 | JM8 | 1 | 25.4 | 49.1 |
| HSM-MJAN-J-104 | NM4 | JM12 | 1-3/8 | 34.9 | 57.1 |
| HSM-MJAN-J-105 | NM6 | JM4 | 3/4 | 19.1 | 42.8 |
| HSM-MJAN-J-106 | NM6 | JM6 | 13/16 | 20.6 | 44.5 |
| HSM-MJAN-J-107 | NM6 | JM8 | 1 | 25.4 | 46.0 |
| HSM-MJAN-J-108 | NM6 | JM12 | 1-3/8 | 34.9 | 57.1 |
| HSM-MJAN-J-109 | NM8 | JM4 | 15/16 | 23.8 | 50.8 |
| HSM-MJAN-J-110 | NM8 | JM8 | 1 | 25.4 | 54.0 |
| HSM-MJAN-J-111 | NM8 | JM12 | 1-3/8 | 34.9 | 61.9 |
