Male-Female Adaptor National Pipe Thread NPT
Adaptors - High Pressure Systems
| NATIONAL PIPE THREAD(NPT)
|
|||||

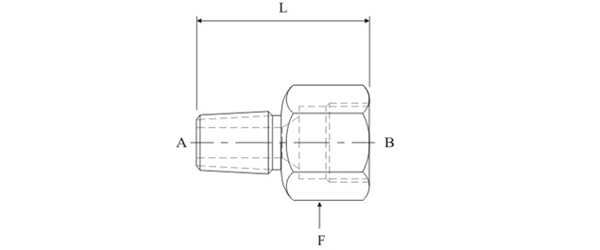

| Catalouge # | A MALE END |
B FEMALE END |
F-HEX Inch mm< | L mm | |
| HSM-FANPT/15-NM2-XF4 | NM2 | XF4 | 5/8 | 15.9 | 46.0 |
| HSM-FANPT/15-NM2-XF6 | NM2 | XF6 | 3/4 | 19.0 | 35.1 |
| HSM-FANPT/15-NM2-XF9 | NM2 | XF9 | 1 | 25.4 | 44.5 |
| HSM-FANPT/15-NM2-ZF4 | NM2 | ZF4 | 3/4 | 19.0 | 31.8 |
| HSM-FANPT/15-NM2-ZF6 | NM2 | ZF6 | 1 | 25.4 | 38.1 |
| HSM-FANPT/15-NM2-ZF9 | NM2 | ZF9 | 1-3/8 | 35.0 | 41.3 |
| HSM-FANPT/15-NM4-XF4 | NM4 | XF4 | 5/8 | 15.9 | 35.1 |
| HSM-FANPT/15-NM4-XF6 | NM4 | XF6 | 3/4 | 19.0 | 39.7 |
| HSM-FANPT/15-NM4-XF9 | NM4 | XF9 | 1 | 25.4 | 44.5 |
| HSM-FANPT/10-NM4-XF12 | NM4 | XF12 | 1-3/8 | 35.0 | 57.2 |
| HSM-FANPT/10-NM4-XF16 | NM4 | XF16 | 1-3/4 | 44.5 | 73 |
| HSM-FANPT/15-NM4-ZF4 | NM4 | ZF4 | 3/4 | 19.0 | 35.1 |
| HSM-FANPT/15-NM4-ZF5 | NM4 | ZF5 | 1 | 25.4 | 63.5 |
| HSM-FANPT/15-NM4-ZF6 | NM4 | ZF6 | 1 | 25.4 | 41.3 |
| HSM-FANPT/15-NM4-ZF9 | NM4 | ZF9 | 1-3/8 | 35.0 | 44.5 |
| HSM-FANPT/15-NM4-NF8 | NM4 | NF8 | 1-3/16 | 30.0 | 57.2 |
| HSM-FANPT/15-NM6-XF4 | NM6 | XF4 | 3/4 | 19.0 | 35.1 |
| HSM-FANPT/15-NM6-XF6 | NM6 | XF6 | 3/4 | 19.0 | 38.1 |
| HSM-FANPT/15-NM6-XF9 | NM6 | XF9 | 1 | 25.4 | 44.5 |
| HSM-FANPT/10-NM6-XF12 | NM6 | XF12 | 1-3/8 | 35.0 | 50.8 |
| HSM-FANPT/10-NM6-XF16 | NM6 | XF16 | 1-3/4 | 44.5 | 73 |
| HSM-FANPT/15-NM6-ZF4 | NM6 | ZF4 | 3/4 | 19.0 | 35.1 |
| HSM-FANPT/15-NM6-ZF6 | NM6 | ZF6 | 1 | 25.4 | 41.3 |
| HSM-FANPT/15-NM6-ZF9 | NM6 | ZF9 | 1-3/8 | 35.0 | 44.5 |
| HSM-FANPT/15-NM6-ZF9 | NM6 | ZF9 | 1-3/8 | 35.0 | 44.5 |
| HSM-FANPT/15-NM6-NF8 | NM6 | NF8 | 1-3/16 | 30.0 | 57.2 |
| HSM-FANPT/15-NM8-XF4 | NM8 | XF4 | 1 | 25.4 | 35.1 |
| HSM-FANPT/15-NM8-XF6 | NM8 | XF6 | 1 | 25.4 | 41.3 |
| HSM-FANPT/15-NM8-XF9 | NM8 | Xf9 | 1 | 25.4 | 49.2 |
| HSM-FANPT/10-NM8-XF12 | NM8 | XF12 | 1-3/8 | 35.1 | 55.5 |
| HSM-FANPT/10-NM8-XF16 | NM8 | XF16 | 1-3/4 | 44.5 | 71.4 |
| HSM-FANPT/15-NM8-ZF4 | NM8 | ZF4 | 1 | 25.4 | 38.1 |
| HSM-FANPT/15-NM8-ZF6 | NM8 | ZF6 | 1 | 25.4 | 44.5 |
| HSM-FANPT/15-NM8-ZF9 | NM8 | ZF9 | 1-3/8 | 35.0 | 47.6 |
| HSM-FANPT/15-NM8-ZF9 | NM8 | ZF9 | 1-3/8 | 35.0 | 44.5 |
| HSM-FANPT/15-NM8-NF12 | NM8 | NF12 | 1-3/8 | 35.0 | 57.2 |
| HSM-FANPT/10-NM12-XF4 | NM12 | XF4 | 1-3/16 | 30.0 | 44.5 |
| HSM-FANPT/10-NM12-XF6 | NM12 | XF6 | 1-3/16 | 30.0 | 44.5 |
| HSM-FANPT/10-NM12-ZF9 | NM12 | XF9 | 1-3/8 | 35.0 | 50.8 |
| HSM-FANPT/10-NM12-XF12 | NM12 | XF12 | 1-3/8 | 35.0 | 57.2 |
| HSM-FANPT/10-NM12-XF16 | NM12 | XF16 | 1-3/4 | 44.5 | 73.0 |
| HSM-FANPT/10-NM12-ZF4 | NM12 | ZF4 | 1-3/16 | 30.0 | 44.5 |
| HSM-FANPT/10-NM12-ZF6 | NM12 | ZF6 | 1-3/16 | 30.0 | 50.8 |
| HSM-FANPT/10-NM12-ZF9 | NM12 | ZF9 | 1-3/8 | 35.0 | 54.0 |
| HSM-FANPT/10-NM12-NF2 | NM12 | NF2 | 1-3/16 | 30.0 | 41.3 |
| HSM-FANPT/10-NM16-XF4 | NM6 | XF6 | 1-3/8 | 35.0 | 50.8 |
| HSM-FANPT/10-NM16-XF9 | NM6 | XF9 | 1-3/8 | 35.0 | 57.2 |
| HSM-FANPT/10-NM16-XF12 | NM6 | XF12 | 1-3/8 | 35.0 | 66.7 |
| HSM-FANPT/10-NM16-XF16 | NM6 | XF16 | 1-3/4 | 44.5 | 77.8 |
| HSM-FANPT/10-NM16-ZF6 | NM6 | ZF6 | 1-3/8 | 35.0 | 50.8 |
| HSM-FANPT/10-NM16-ZF9 | NM6 | ZF9 | 1-3/8 | 35.0 | 57.2 |
