Male-Female JIC Adaptor JIC to High Pressure Adaptors
Adaptors - High Pressure Systems
| JIC TO HIGH PRESSURE ADAPTERS | |||||

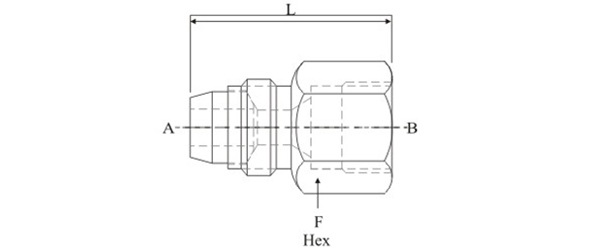

| Catalouge # | A MALE END |
B FEMALE END |
F-HEXInch mm | Bmm | |
| HSM-FANPT/20-JM4-ZF4 | JM4 | ZF4 | 3/4 | 19.0 | 35.1 |
| HSM-FANPT/20-JM4-JM6 | JM4 | ZF6 | 1 | 25.4 | 38.1 |
| HSM-FANPT/20-JM4-ZF9 | JM4 | ZF9 | 1-3/8 | 35.0 | 50.8 |
| HSM-FANPT/20-JM4-ZF6 | JM6 | ZF6 | 1 | 25.4 | 38.1 |
| JIC TO NPT ADAPTERS | |||||
| Catalouge # | A MALE END |
B FEMALE END |
F-HEXInch mm | Lmm | |
| HSM-FANPT/15-JM4-NF4 | JM4 | NF4 | 15/16 | 23.8 | 38.1 |
| HSM-FANPT/15-JM4-NF8 | JM4 | NF8 | 1-3/16 | 30.0 | 47.8 |
| MEDIUM PRESSURE TO JIC ADAPTERS
|
|||||
| Catalouge # | A MALE END |
B FEMALE END |
F-HEXInch mm | Lmm | |
| HSM-FANPT/20-XM4-JF4 | XM4 | JF4 | 3/4 | 19.0 | 39.7 |
| HSM-FANPT/20-XM4-JF6 | XM4 | JF6 | 13/16 | 20.6 | 38.1 |
| HSM-FANPT/20-XM2-JF4 | XM12 | JF4 | 1-3/16 | 30.0 | 50.8 |
| HIGH PRESSURE TO JIC ADAPTERS | |||||
| Catalouge # | A-Male End this Connection |
B FEMALE END |
F-HEXInch mm | Lmm | |
| HSM-FANPT/20-ZM4-JM4 | 60ZM4 | 20JM4 | 13/16 | 20.6 | 38.1 |
| NPT TO JIC ADAPTERS | |||||
| Catalouge # | A MALE END |
B FEMALE END |
F-HEX Inch mm | L mm | |
| HSM-FANPT/15-NM6-JF6 | NM6 | JF6 | 13/16 | 20.6 | 38.1 |
