NPT to Reverse High Pressure
Adaptors - High Pressure Systems

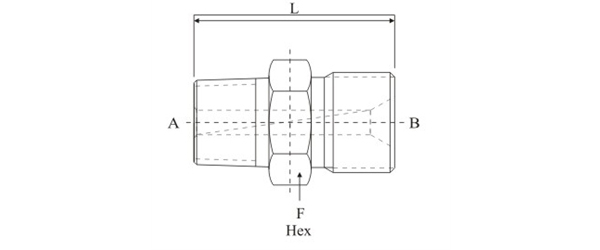

| NPT to Reverse High Pressure Adapters | |||||
| Part No | A NPT |
B Reverse High |
F
HEX Inch mm |
L mm | |
| HSNRHP-101 | NM4 | RH9 | 5/8 | 15.9 | 41.2 |
| HSNRHP-102 | NM4 | RH12 | 13/16 | 20.6 | 47.6 |
| HSNRHP-103 | NM4 | RH16 | 1 | 25.4 | 57.1 |
| HSNRHP-104 | NM6 | RH9 | 3/4 | 19.0 | 46.2 |
| HSNRHP-105 | NM6 | RH12 | 13/16 | 20.6 | 49.1 |
| HSNRHP-106 | NM6 | RH16 | 1 | 25.4 | 54.0 |
| HSNRHP-107 | NM8 | RH9 | 15/16 | 23.8 | 50.8 |
| HSNRHP-108 | NM8 | RH12 | 15/16 | 23.8 | 54.0 |
| HSNRHP-109 | NM8 | RH14 | 1 | 25.4 | 57.1 |
| HSNRHP-110 | NM8 | RH16 | 1 | 25.4 | 58.7 |
| HSNRHP-111 | NM12 | RH12 | 1-3/16 | 30.0 | 58.7 |
| HSNRHP-112 | NM12 | RH16 | 1-3/8 | 34.9 | 66.7 |
| HSNRHP-113 | NM12 | RH21 | 1-3/8 | 34.9 | 66.7 |
| HSNRHP-114 | NM16 | RH9 | 1-3/8 | 34.9 | 57.2 |
| HSNRHP-115 | NM16 | RH16 | 1-3/8 | 34.9 | 71.4 |
| HSNRHP-116 | NM16 | RH21 | 1-3/8 | 34.9 | 68.0 |
