Male-Male Adaptor Medium Pressure to High Pressure
Adaptors - High Pressure Systems

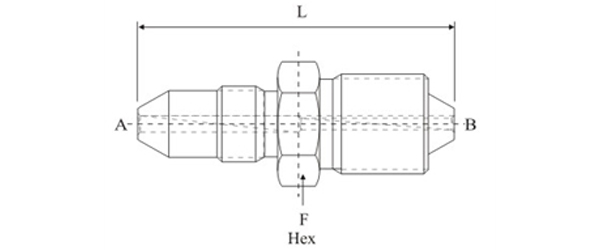

| MALE-MALE ADAPTER MEDIUM PRESSURE TO HIGH PRESSURE
|
|||||
| Part No | A High pressure | B Reverse High |
F
HEX Inch mm |
B mm | |
| HSM-MAMPHP-101 | XM4 | ZM4 | 5/8 | 15.9 | 44.5 |
| HSM-MAMPHP-102 | XM4 | ZM6 | 13/16 | 20.6 | 54.0 |
| HSM-MAMPHP-103 | XM4 | ZM9 | 1-3/16 | 30.0 | 66.7 |
| HSM-MAMPHP-104 | XM6 | ZM4 | 5/8 | 15.9 | 49.2 |
| HSM-MAMPHP-105 | XM6 | ZM6 | 13/16 | 20.6 | 60.3 |
| HSM-MAMPHP-106 | XM6 | ZM9 | 1-3/16 | 30.0 | 68.0 |
| HSM-MAMPHP-107 | XM9 | ZM4 | 13/16 | 20.6 | 57.1 |
| HSM-MAMPHP-108 | XM9 | ZM6 | 13/16 | 20.3 | 65.0 |
| HSM-MAMPHP-109 | XM9 | ZM9 | 1-3/16 | 30.0 | 74.6 |
| HSM-MAMPHP-110 | XM12 | ZM4 | 1-3/16 | 30.0 | 66.7 |
| HSM-MAMPHP-111 | XM12 | ZM6 | 1-3/16 | 30.0 | 73.0 |
| HSM-MAMPHP-112 | XM12 | ZM9 | 1-3/16 | 30.0 | 76.2 |
| HSM-MAMPHP-113 | XM16 | ZM4 | 1-3/8 | 34.9 | 82.6 |
| HSM-MAMPHP-114 | XM16 | ZM6 | 1-3/8 | 34.9 | 89.0 |
| HSM-MAMPHP-115 | XM16 | ZM9 | 1-3/8 | 34.9 | 93.6 |
