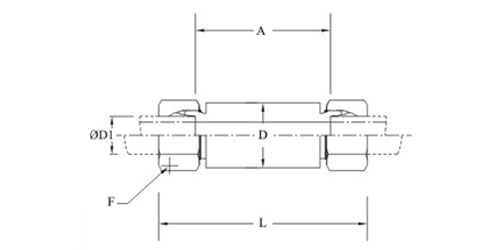

WELD BULKHEAD UNION
|
| SERIES |
Part No. |
Tube
OD
|
D |
F
|
L |
A |
| L |
HSWBU/06L |
6 |
18 |
14 |
85 |
56 |
| light |
HSWBU/08L |
8 |
20 |
17 |
85 |
56 |
| 315 |
HSWBU/10L |
10 |
22 |
19 |
87 |
58 |
| |
HSWBU/12L |
12 |
25 |
22 |
87 |
58 |
| |
HSWBU/15L |
15 |
28 |
27 |
100 |
70 |
| |
HSWBU/18L |
18 |
32 |
32 |
101 |
69 |
| PN 315 |
HSWBU/22L |
22 |
36 |
36 |
105 |
73 |
| |
HSWBU/28L |
28 |
40 |
41 |
106 |
73 |
| |
HSWBU/35L |
35 |
50 |
50 |
114 |
71 |
| |
HSWBU/42L |
42 |
60 |
60 |
115 |
70 |
| S |
HSWBU/06S |
6 |
20 |
17 |
89 |
60 |
| Heavy |
HSWBU/08S |
8 |
22 |
19 |
89 |
60 |
| PN 630 |
HSWBU/10S |
10 |
25 |
22 |
91 |
59 |
| |
HSWBU/12S |
12 |
28 |
24 |
91 |
59 |
| |
HSWBU/14S |
14 |
30 |
27 |
107 |
72 |
| PN 400 |
HSWBU/16S |
16 |
35 |
30 |
107 |
71 |
| |
HSWBU/20S |
20 |
38 |
36 |
114 |
71 |
| |
HSWBU/25S |
25 |
45 |
46 |
120 |
72 |
| |
HSWBU/30S |
30 |
50 |
50 |
126 |
73 |
| PN 315 |
HSWBU/38S |
38 |
60 |
60 |
133 |
72 |
