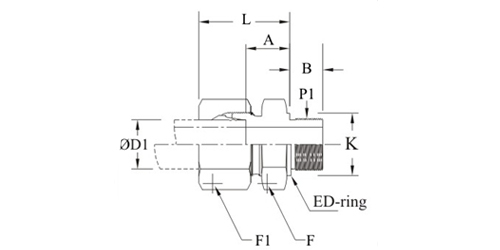

Male Connector Metric Parallel With ED Ring
Hydraulic Fittings
| Series | Part No | Tube OD1 |
F1 | F | K | L | A | B | P1 M (Metric) |
| L | HSHF/06L-10MED | 6 | 14 | 14 | 14 | 23 | 8.5 | 8 | M 10x1 |
| light | HSHF/08L-12MED | 8 | 17 | 17 | 17 | 25 | 10 | 12 | M 12x1.5 |
| PN 315 | HSHF/10L-14MED | 10 | 19 | 19 | 19 | 26 | 11 | 12 | M 14x1.5 |
| HSHF/12L-16MED | 12 | 22 | 22 | 22 | 27 | 12.5 | 12 | M 16x1.5 | |
| HSHF/12L-18MED | 12 | 22 | 24 | 24 | 27 | 12.5 | 12 | M 18x1.5 | |
| HSHF/12L-22MED | 12 | 22 | 27 | 27 | 29 | 14 | 14 | M 22x1.5 | |
| HSHF/15L-18MED | 15 | 27 | 24 | 24 | 29 | 13.5 | 12 | M 18x1.5 | |
| HSHF/15L-22MED | 15 | 27 | 27 | 27 | 30 | 15 | 14 | M 22x1.5 | |
| HSHF/18L-22MED | 18 | 32 | 27 | 27 | 31 | 14.5 | 14 | M 22x1.5 | |
| PN 160 | HSHF/22L-26MED | 22 | 36 | 32 | 32 | 33 | 16.5 | 16 | M 26x1.5 |
| HSHF/28L-33MED | 28 | 41 | 41 | 40 | 34 | 17.5 | 18 | M 33x2 | |
| HSHF/35L-42MED | 35 | 50 | 50 | 50 | 39 | 17.5 | 20 | M 42x2 | |
| HSHF/42L-48MED | 42 | 60 | 55 | 55 | 42 | 19 | 22 | M 48x2 | |
| S | HSHF/06S-12MED | 6 | 17 | 17 | 17 | 28 | 13 | 12 | M 12x1.5 |
| heavy | HSHF/08S-14MED | 8 | 19 | 19 | 19 | 30 | 15 | 12 | M 14x1.5 |
| PN | HSHF/10S-16MED | 10 | 22 | 22 | 22 | 31 | 15 | 12 | M 16x1.5 |
| HSHF/12S-18MED | 12 | 24 | 24 | 24 | 33 | 17 | 12 | M 18x1.5 | |
| HSHF/14S-20MED | 14 | 27 | 27 | 26 | 37 | 19 | 14 | M 20x1.5 | |
| PN 400 | HSHF/16S-22MED | 16 | 30 | 27 | 27 | 37 | 18.5 | 14 | M 22x1.5 |
| HSHF/20S-27MED | 20 | 36 | 32 | 32 | 42 | 20.5 | 16 | M 27x2 | |
| HSHF/25S-33MED | 25 | 46 | 41 | 40 | 47 | 23 | 18 | M 33x2 | |
| HSHF/30S-42MED | 30 | 50 | 50 | 50 | 50 | 23.5 | 20 | M 42x2 | |
| PN 315 | HSHF/38S-48MED | 38 | 60 | 55 | 55 | 57 | 26 | 22 | M 48x2 |
